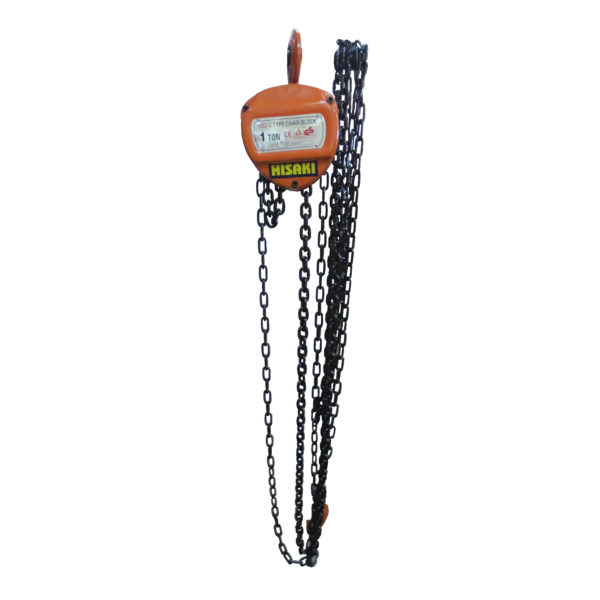

MANUAL CHAIN BLOCK
Product Code: MANUAL CHAIN BLOCK
Availability: Pre Order
SPECIFICATIONS
| Model | HSJ0.5T-3M | HSZ622-1A | HSZ-622-2A | HSZ622-3A | HSZ622-5A | HSZ622-10A |
|---|---|---|---|---|---|---|
| Capacity (tons) | 0.5 | 1.0 | 2.0 | 3.0 | 5.0 | 10.0 |
| Standard lift (m) | 3.0 | 3 / 5 | 3 / 5 | 3 / 5 | 5.0 | 5.0 |
| Running test load (kn) | 7.0 | 15 | 30 | 45 | 75.0 | 150.0 |
| Effort required to lift rated load (N) | 221.0 | 309 | 360 | 340 | 414.0 | 414.0 |
| Strands of load chain | 1.0 | 1 | 1 | 2 | 2.0 | 4.0 |
| Load chain diameter (mm) | 6.0 | 6 | 8 | 8 | 10.0 | 10.0 |
| Net weight (kg) | 9.0 | 12 | 20 | 29 | 45.5 | 83.0 |
