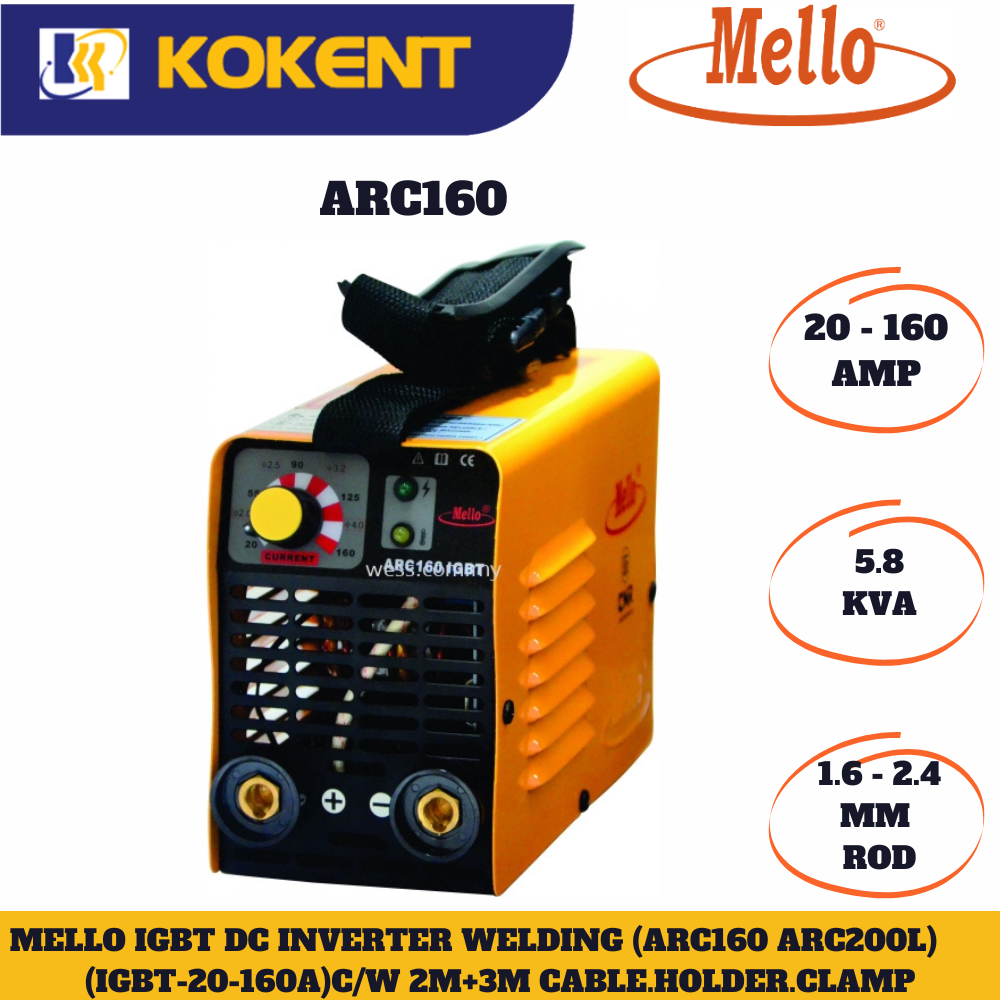

MELLO ARC160(IGBT) 1 PHASE INVERTER WELDING MACHINE
Product Code: ARC160
Availability: In Stock
| ITEM \ MODEL | UNIT | ARC 160 |
| Input Power Voltage / Freq. | V/Hz | AC240V 50/60 |
| Rate Input Power Capacity | KVA | 5.8 |
| No-Load Voltage | V | 64 |
| Output Current Range | A | 10-140 |
| Rated Output Voltage | V | 26 |
| Duty Cycle (25°c) | % | 60 |
| Efficiency | % | 85 |
| Power Factor (cos Φ) | 0.93 | |
| Insulation class | B | |
| Weight | KG | 2.8 |
| Dimension (L x W x H) | mm | 230 x 100 x 150 |
| Protection Class | IP23 | |
| Arc Force | A | - |
| Diameter of Rod | mm | 1.6 - 2.4 |
| Accessories | 2pcs KDP-16, Electrode Holder & Earth Clamp with 3MX16MM2 Cable, UK Plug with 1.5M 3X2.5MM2 Power Cable. |
