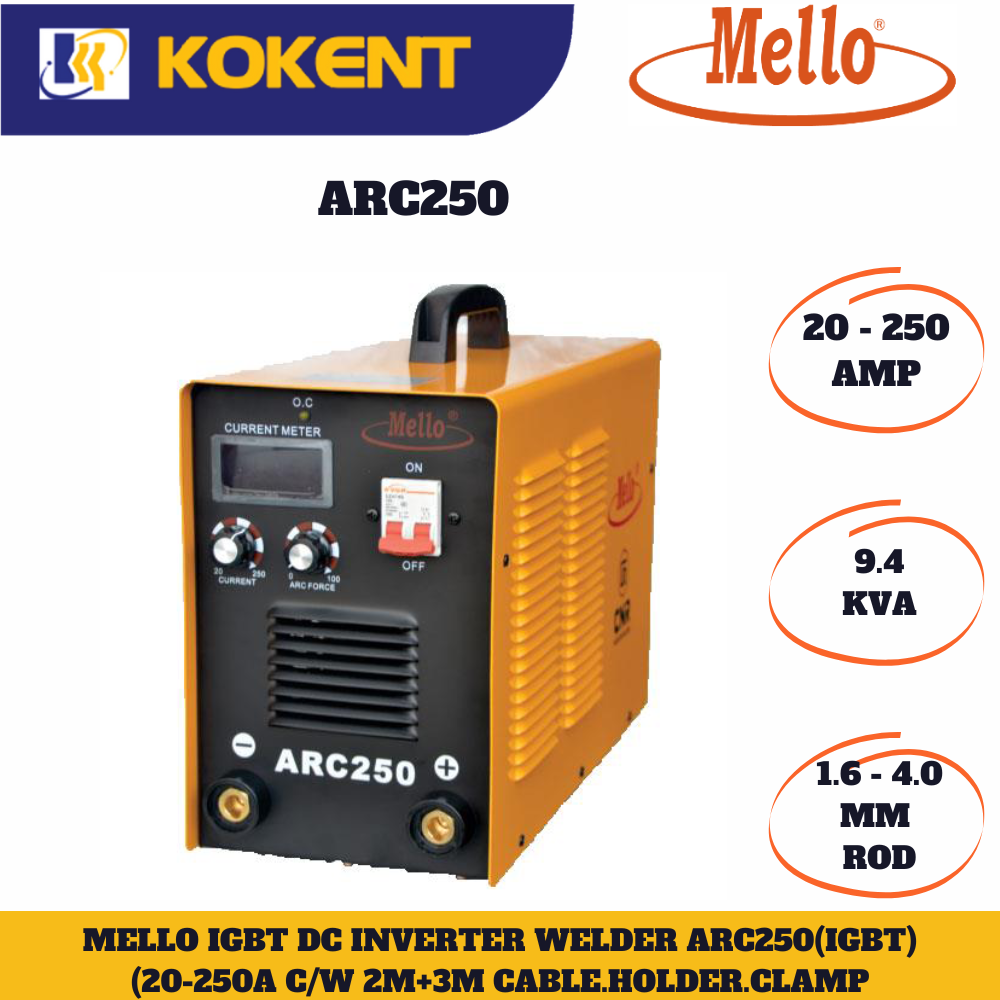

MELLO ARC250(IGBT) 1 PHASE INVERTER WELDING MACHINE
Product Code: ARC250
Availability: In Stock
| ITEM \ MODEL | UNIT | ARC 250 |
| Input Power Voltage / Freq. | V/Hz | AC240V 50/60 |
| Rate Input Power Capacity | KVA | 9.4 |
| No-Load Voltage | V | 67 |
| Output Current Range | A | 20-250 |
| Rated Output Voltage | V | 30 |
| Duty Cycle (25°c) | % | 60 |
| Efficiency | % | 85 |
| Power Factor (cos Φ) | 0.93 | |
| Insulation class | F | |
| Weight | KG | 17.2 |
| Dimension (L x W x H) | mm | 480 x 205 x 320 |
| Protection Class | IP23 | |
| Arc Force | A | 0-60 |
| Diameter of Rod | mm | 1.6 - 4 |
| Accessories | 2pcs KDP-50, Electrode Holder & Earth Clamp with 3M x 25MM2 Cable, 3M 3X2.5MM2 Power Cable. |
