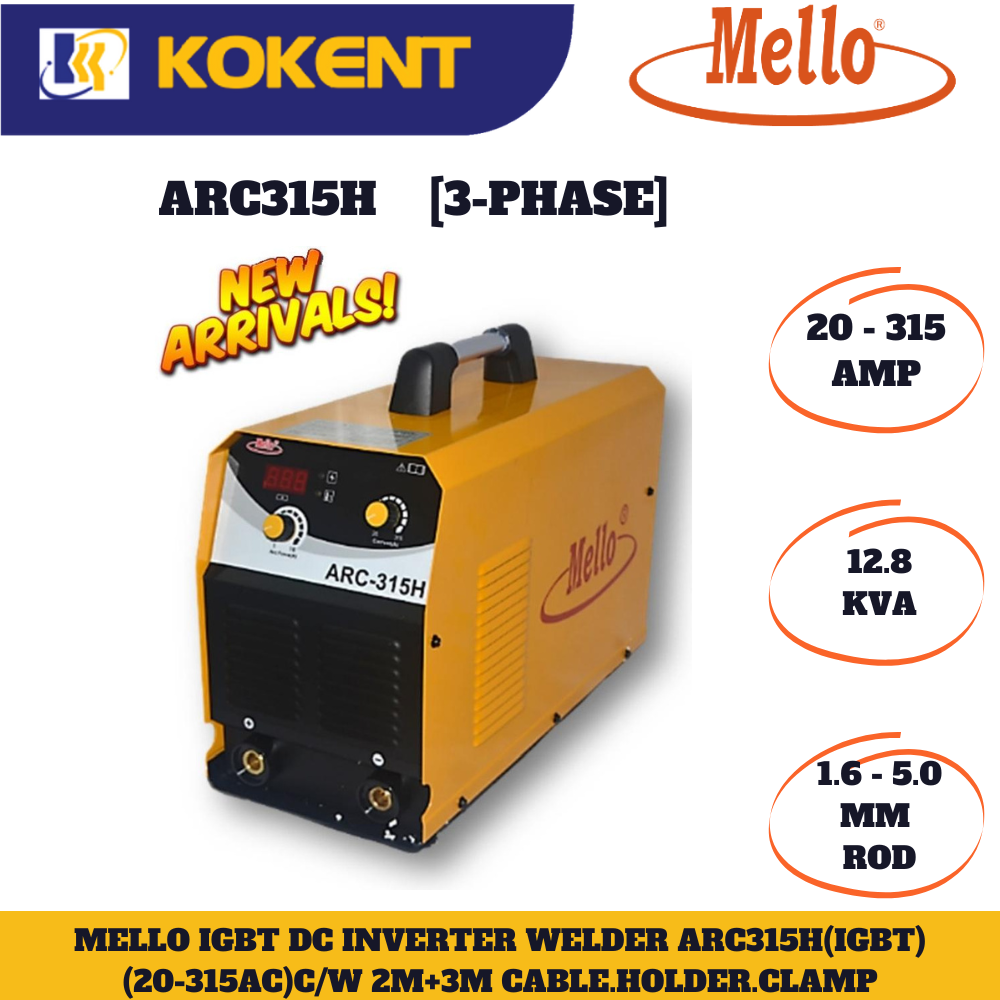

MELLO ARC315H (ICBT) 3PHASE INVERTER WELDING MACHINE
Product Code: ARC315H
Availability: Pre Order
| MODEL | UNIT | ARC-315 |
| Input power voltage | V | AC380V+10% |
| Frequency | Hz | 50/60 |
| No-load voltage | V | 69 |
| No-load loss | W | 80 |
| Rate input power capacity | KVA | 12.8 |
| Rate input current | A | 20 |
| Output current range | A | 20-315 |
| Output voltage range | V | 33 |
| Duty cycle | % | 60 |
| Efficiency | % | 85 |
| Power factor (cos Ø) | 0.93 | |
| Insulation class | B | |
| Protection class | IP21 | |
| Arc force | A | 0 - 100 |
| Diameter of rod | mm | 1.6 - 5 |
| Gross weIght | KG | 15 |
| Dimensions (LxWxH) | mm | 480 x 202 x 303 |
| Accessories | 2pcs KSD50 male plug, 3M 4x4mm2 power cable |
