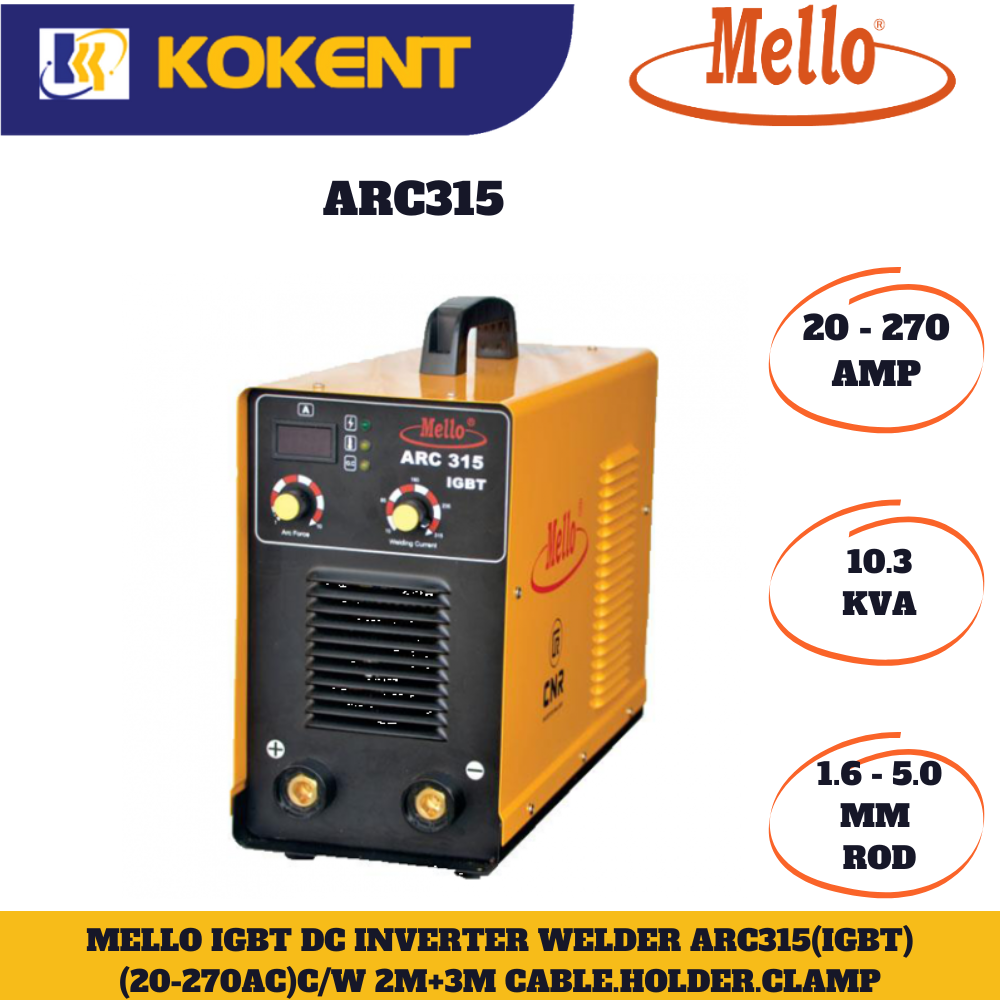

MELLO ARC315(IGBT) 3 PHASE INVERTER WELDING MACHINE
Product Code: ARC315
Availability: Pre Order
| ITEM \ MODEL | UNIT | ARC 315 |
| Input Power Voltage / Freq. | V/Hz | AC415V 50/60 |
| Rate Input Power Capacity | KVA | 10.3 |
| No-Load Voltage | V | 60 |
| Output Current Range | A | 20-270 |
| Rated Output Voltage | V | 30.8 |
| Duty Cycle (25°c) | % | 60 |
| Efficiency | % | 85 |
| Power Factor (cos Φ) | 0.93 | |
| Insulation class | F | |
| Weight | KG | 13.5 |
| Dimension (L x W x H) | mm | 435 x 185 x 310 |
| Protection Class | IP23 | |
| Arc Force | A | 0-100 |
| Diameter of Rod | mm | 1.6 - 5 |
| Accessories | 2pcs KDP-50, 3M 4x2.5MM2 Power Cable. |
