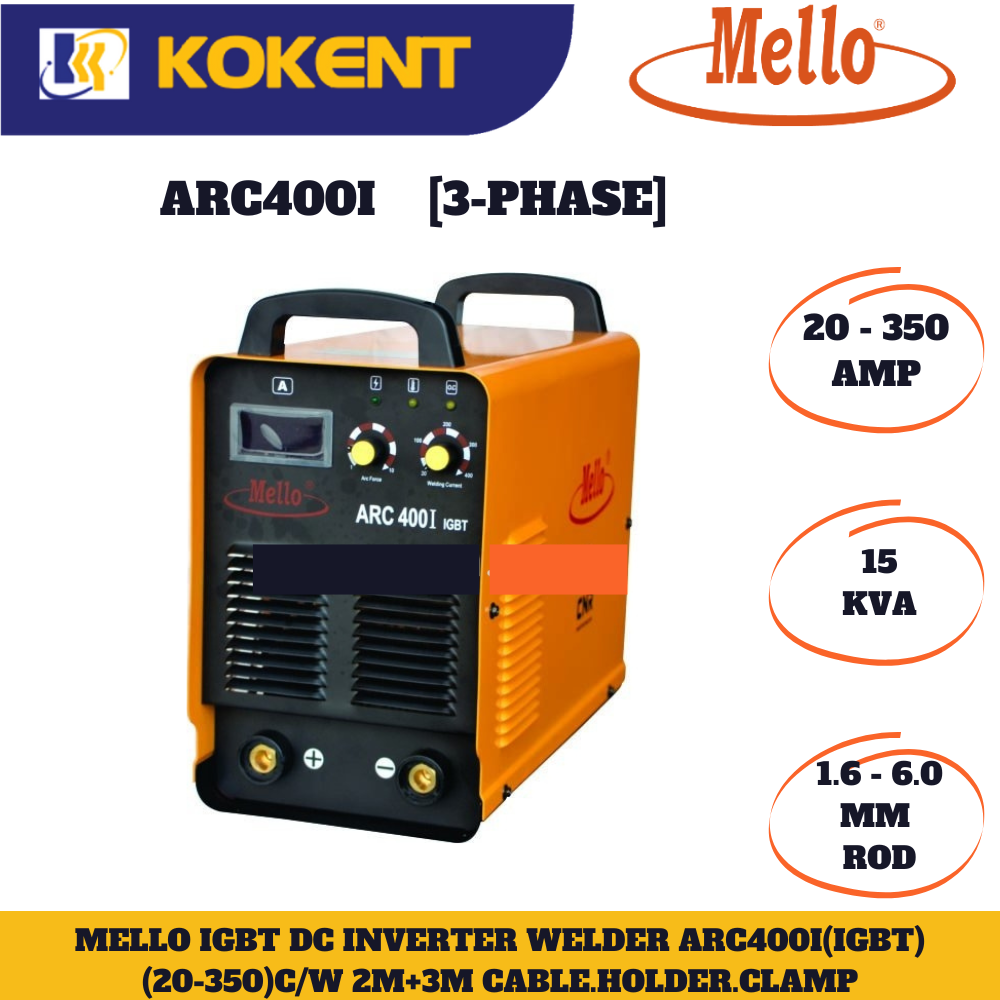

MELLO ARC400I(IGBT) 3 PHASE INVERTER WELDING MACHINE
Product Code: ARC4001
Availability: Pre Order
| ITEM \ MODEL | UNIT | ARC 400 I |
| Input Power Voltage / Freq. | V/Hz | AC415V 50/60 |
| Rate Input Power Capacity | KVA | 15 |
| No-Load Voltage | V | 63 |
| Output Current Range | A | 20-350 |
| Rated Output Voltage | V | 34 |
| Duty Cycle (25°c) | % | 60 |
| Efficiency | % | 85 |
| Power Factor (cos Φ) | 0.93 | |
| Insulation class | F | |
| Weight | KG | 19 |
| Dimension (L x W x H) | mm | 475 x 230 x 400 |
| Protection Class | IP23 | |
| Arc Force | A | 0-100 |
| Diameter of Rod | mm | 1.6 - 6 |
| Accessories | 2pcs KDP-70, 3M 4x4MM2 Power Cable. |
