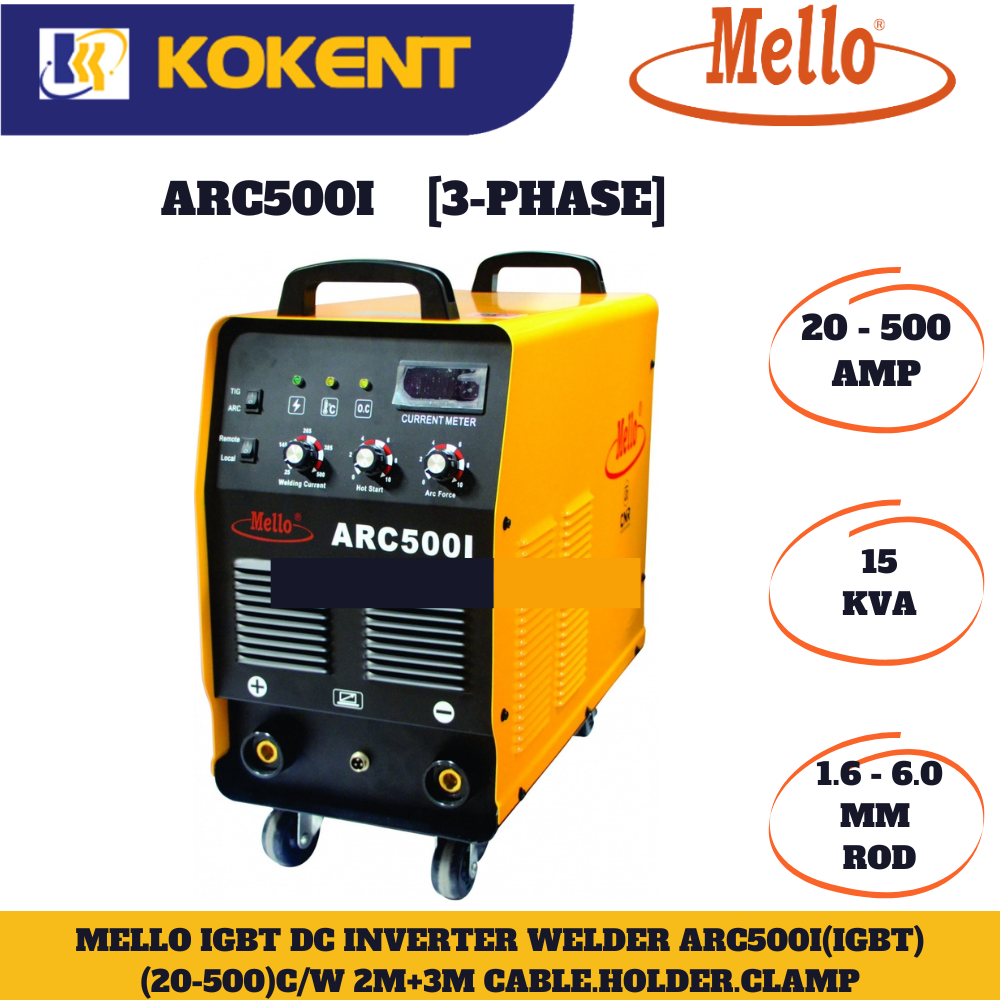

MELLO ARC500I(IGBT) 3 PHASE INVERTER WELDING MACHINE
Product Code: ARC500I
Availability: Pre Order
| ITEM \ MODEL | UNIT | ARC 500I |
| Input Power Voltage / Freq. | V/Hz | AC415V 50/60 |
| Rate Input Power Capacity | KVA | 25 |
| No-Load Voltage | V | 67 |
| Output Current Range | A | 20-500 |
| Rated Output Voltage | V | 40 |
| Duty Cycle (25°c) | % | 60 |
| Efficiency | % | 85 |
| Power Factor (cos Φ) | 0.93 | |
| Insulation class | F | |
| Weight | KG | 35 |
| Dimension (L x W x H) | mm | 580 x 334 x 480 |
| Protection Class | IP23 | |
| Arc Force | A | 0-200 |
| Diameter of Rod | mm | 1.6 - 6 |
| Accessories | 2pcs KDP-90, 3M 4x4MM2 Power Cable. |
