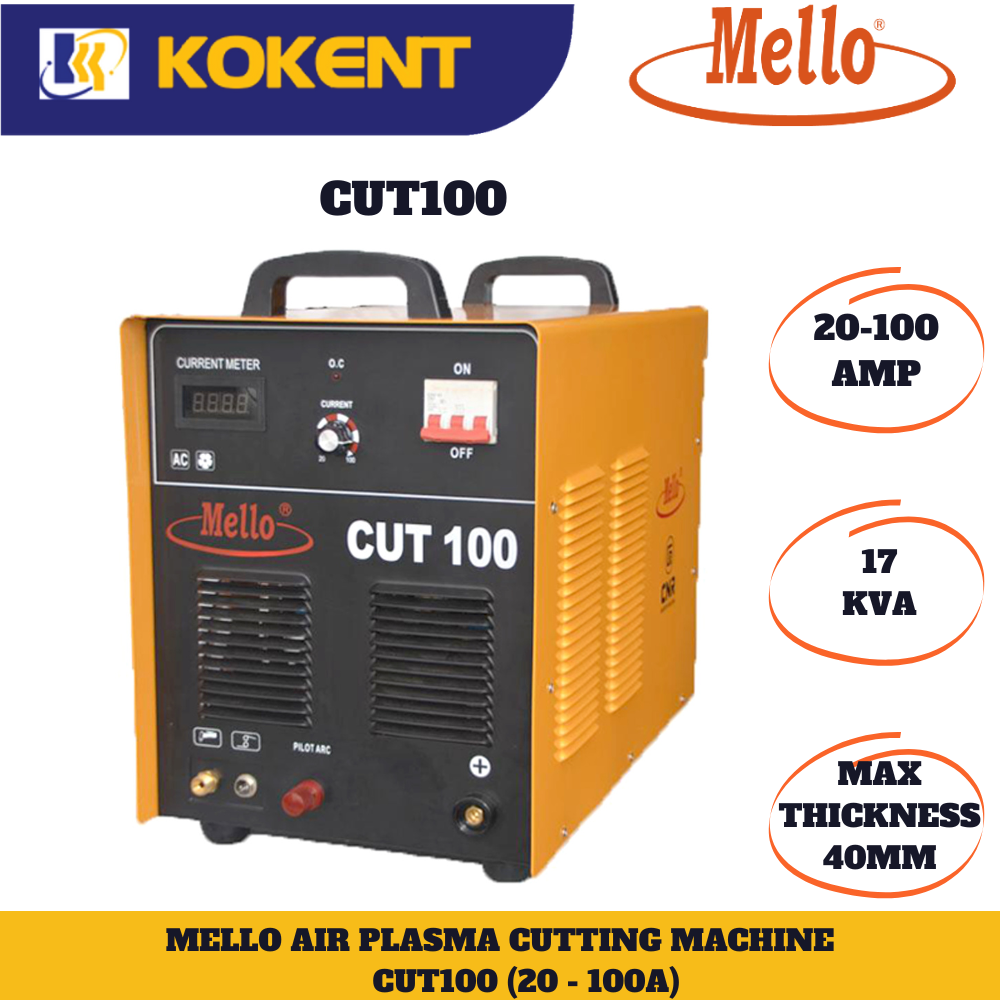

MELLO CUT100(MOS) 3 PHASE INVERTER AIR PLASMA CUTTING MACHINE
Product Code: CUT100
Availability: Pre Order
| ITEM \ MODEL | UNIT | CUT 100 |
| Input Power Voltage / Freq. | V/Hz | AC415V 50/60 |
| Rate Input Power Capacity | KVA | 17 |
| No-Load Voltage | V | 340 |
| Current Range | A | 20-100 |
| Rated Output Voltage | V | 120 |
| Duty Cycle (25°c) | % | 60 |
| Efficiency | % | 85 |
| Power Factor (cos Φ) | 0.93 | |
| Insulation Class | F | |
| Protection Class | IP23 | |
| Arc-Starting | NON-TOUCH | |
| Weight | KG | 32 |
| Dimension (L x W x H) | mm | 518 x 334 x 495 |
| Gas Flow | m3/min | 0.36 |
| Max. Cutting Thickness | mm | 40 |
| Accessories | 5M P80 Plasma Cutting Torch, 1pc KDP-16, Earth Clamp with 3MX16MM2 Cable, Air Regulator, 3M 4X4MM2 Power Cable. |
