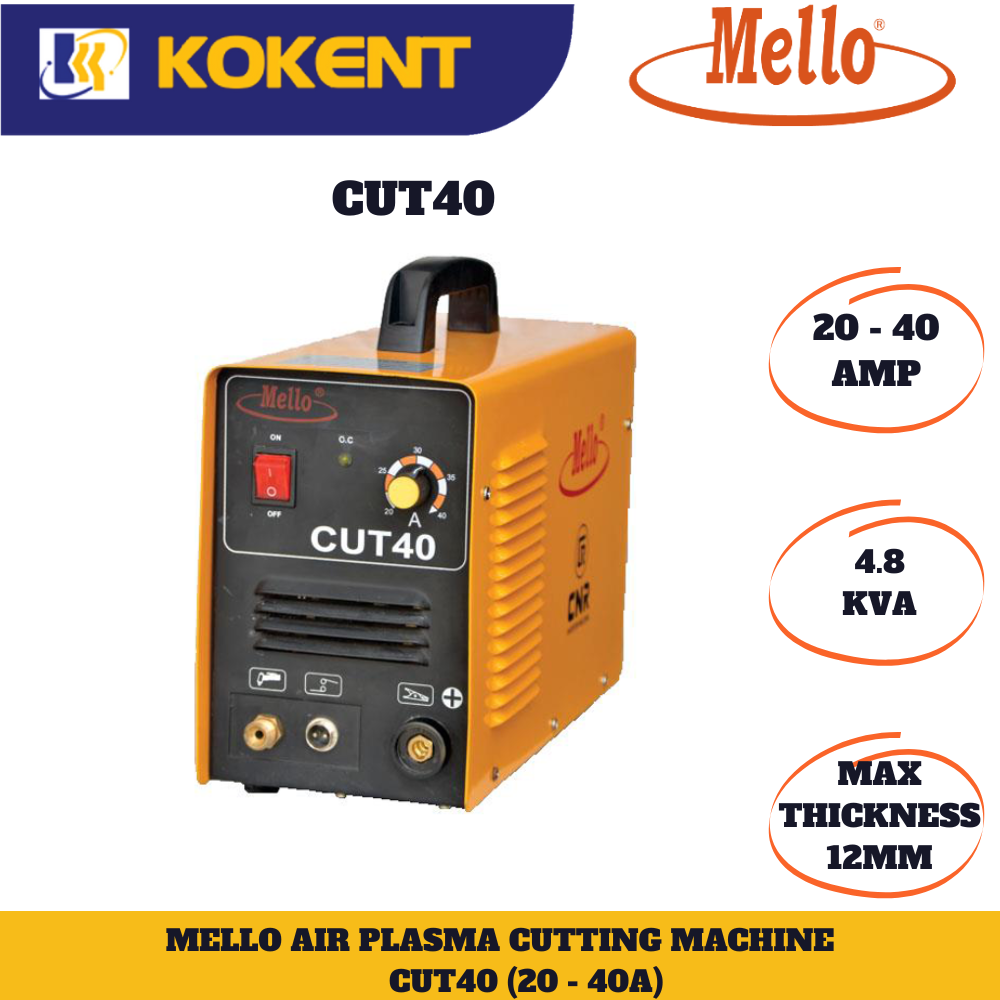

MELLO CUT40(MOS) 1 PHASE INVERTER AIR PLASMA CUTTING MACHINE
Product Code: CUT40
Availability: Pre Order
| ITEM \ MODEL | UNIT | CUT 40 |
| Input Power Voltage / Freq. | V/Hz | AC240V 50/60 |
| Rate Input Power Capacity | KVA | 4.8 |
| No-Load Voltage | V | 230 |
| Current Range | A | 20-40 |
| Rated Output Voltage | V | 96 |
| Duty Cycle (25°c) | % | 60 |
| Efficiency | % | 85 |
| Power Factor (cos Φ) | 0.93 | |
| Insulation Class | F | |
| Protection Class | IP23 | |
| Arc-Starting | TOUCH | |
| Weight | KG | 8.6 |
| Dimension (L x W x H) | mm | 371 x 155 x 295 |
| Gas Flow | m3/min | 0.17 |
| Max. Cutting Thickness | mm | 12 |
| Accessories | 5M PT31 Plasma Cutting Torch, 1pc KDP-16, Earth Clamp with 3MX6MM2 Cable, Air Regulator, UK Plug with 3M 3X2.5MM2 Power Cable. |
