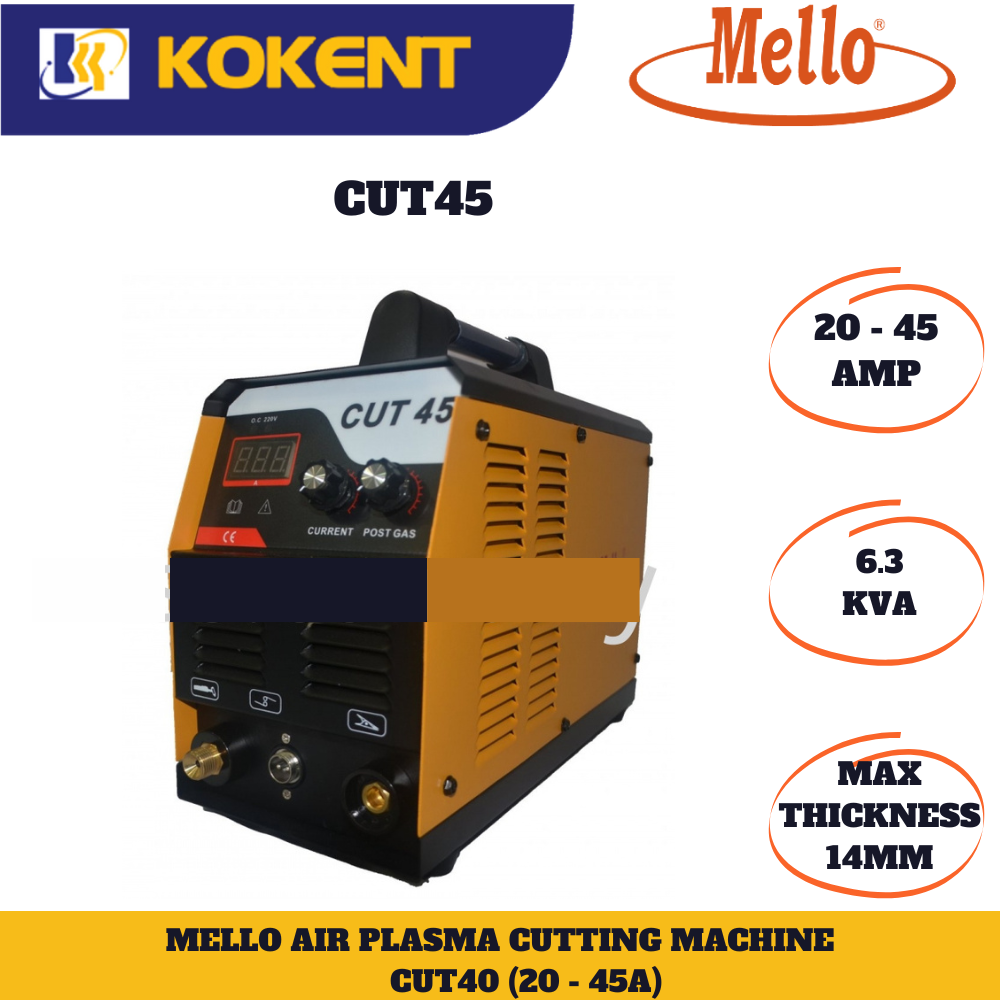

MELLO CUT45(IGBT) 1 PHASE INVERTER AIR PLASMA CUTTING MACHINE
MELLO CUT45(IGBT) 1 PHASE INVERTER AIR PLASMA CUTTING MACHINE

MELLO CUT45(IGBT) 1 PHASE INVERTER AIR PLASMA CUTTING MACHINE

Product Code: CUT45
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:
ITEM / MODEL UNIT CUT45
Input Power Voltage / Freq V/Hz AC240V / 50Hz
Rate Input Power Capacity KVA 6.3
Rated Input Current A 28.6
No-load Voltage  V 242
Rated Output Current A 20-45
Rated Output Voltage V 100
Duty Cycle (25ºc) % 60
Efficiency % 85
Power factor (cosØ)   0.93
Insulation class   F
Post-gas S 2-10
Arc-striking   Touch
Air pressure M Pa 0.4-0.6
Max.Cutting Thickness mm 14
Weight (G.W / N.W) kg 10 / 6.8
Size (L x W x H) (CTN) mm 455 x 273 x 345
Accessories   1. Power cable 3M with 13A 3-pin plug.
2. Front Panel with KDP16 socket.

3. 300A Earth clamp with 3M 16mm² welding cable & KDP16 plug.

4. PT31 Plasma Torch 5M
5. 3M Air hose 4pcs hose cli.
6. Air Regulator with 2pcs connector.
7. Tip 1pc, Electorde 1pc, Difusser 1pc and Shield cap 1pc
