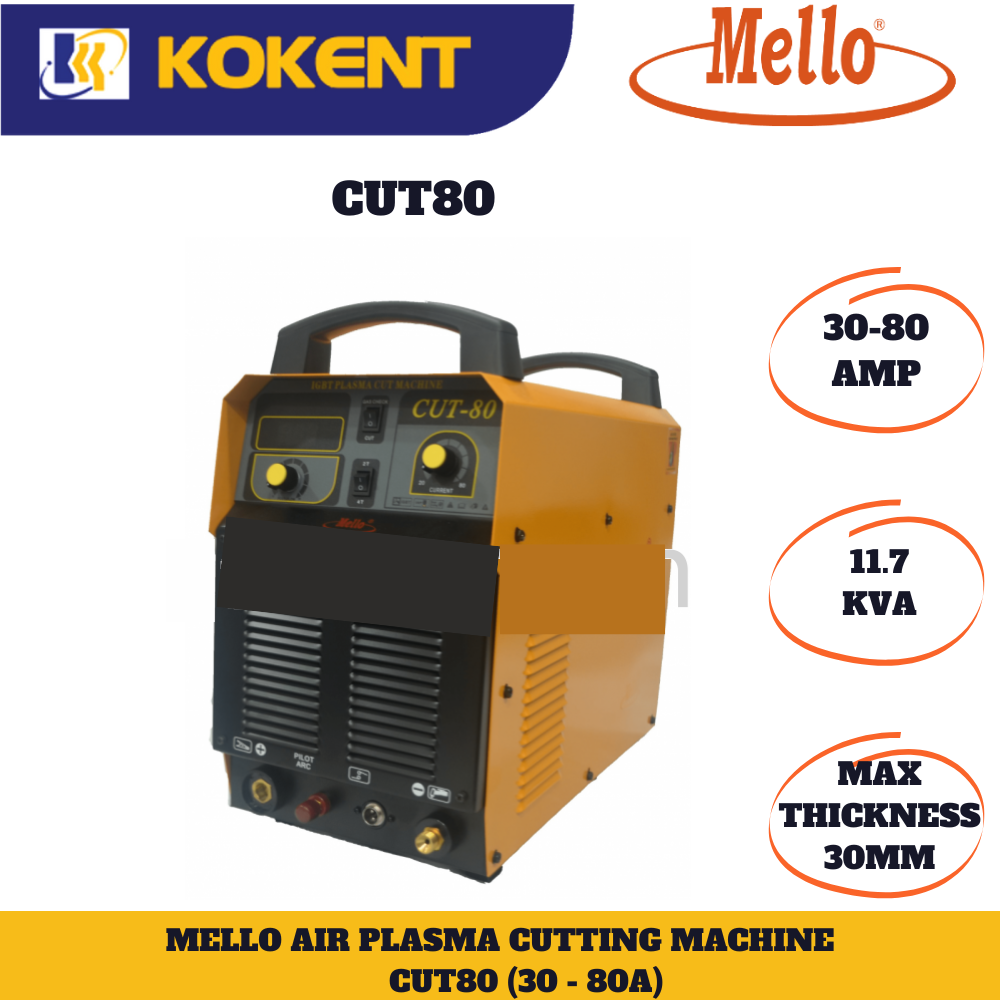

MELLO CUT80(IGBT) 3 PHASE INVERTER AIR PLASMA CUTTING MACHINE
Product Code: CUT80
Availability: Pre Order
| MODEL | UNIT | CUT-80 |
| Input Power Voltage | V | AC415V |
| Input Frequency | Hz | 50/60 |
| Rate Input Power Capacity | KVA | 11.7 |
| No-load Voltage | V | 280 |
| Current Range | A | 30-80 |
| Rated Output Voltage | V | 112 |
| Duty Cycle (25°c) | % | 60 |
| Efficiency | 88 | |
| Power factor (cosØ) | 0.92 | |
| Insulation Class | F | |
| Protection Class | IP21S | |
| Arc-starting | Non-Touch (PILOT ARC) | |
| Type of Gas | Compressor Air | |
| Max. Cutting Thickness | mm | 30 |
| Weight | Kgs | 23 |
| Size (LxWxH) | mm | 500 x 245 x 390 |
| Accessories | 1) 4 core power cable 3M 2) Front Panel with KDP50 socket 3) 300A Earth Clamp with 3M 10mm² Welding Cable & KDP50 Plug 4) P80 Plasma Torch 5M 5) 3M Air Hose with 2pcs hose clip |
