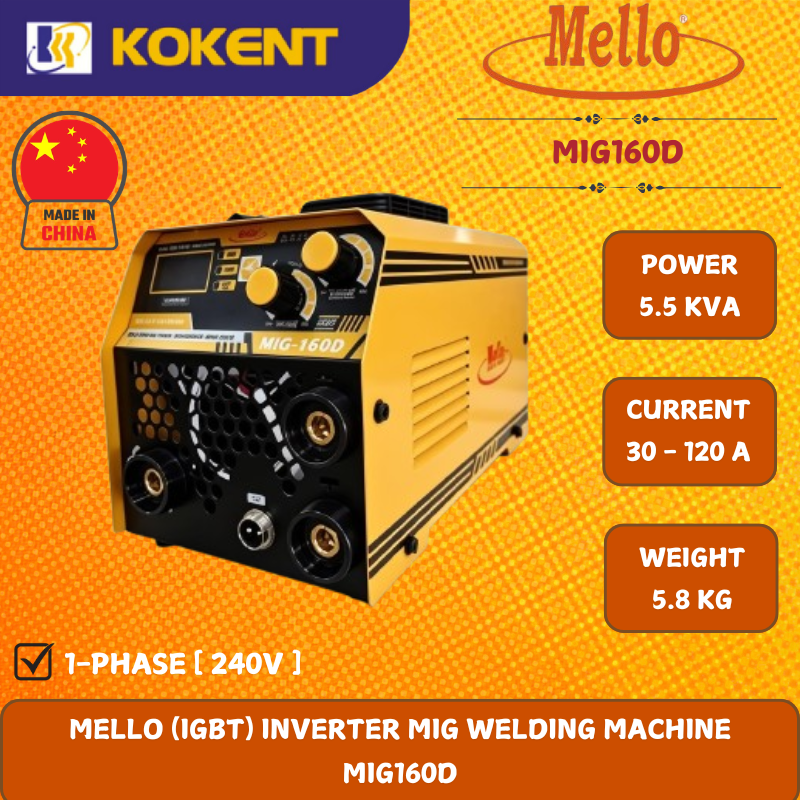

MELLO (IGBT) INVERTER MIG WELDING MACHINE MIG160D
Product Code: MIG160D
Availability: In Stock
PRODUCT SPECIFICATION :
| ITEM/MODEL | UNIT | MIG160D |
| Input Power Voltage / Frequency | V | AC240V/50Hz |
| Rated Input Current | A | 19 |
| Rated Power Capacity | KVA | 5.5 |
| Current Adjustment Range | A | 30-120 |
| Voltage Adjustment Range | V | 11-24.5 |
| No-Load Voltage | V | 64 |
| Feeding Speed Adjustment Range | m/min | 2-15 |
| Welding Wire Diameter Size | mm | 0.8/1.0 mm |
| Rated Duty Cycle | 60% | |
| Efficiency | % | 85 |
| Power Factor | cosØ | 0.93 |
| Protection Class | IP21S | |
| Insulation Class | F | |
| Dimension Ctn | (mm)(LxWxH) | 375 x 260 x 310 |
| Weight | (kg)(G.W/N.W) | 5.8/3 |
| Standard Accessories | 1. MK-14 Torch 2M 2. 200A Electrode Holder with 1.5M Cable 3. 200A Earth Clamp with 1.5M Cable 4. Welding Hand Shield 5. Gasless Wire 0.5kg 6. Iron Brush 7. Nozzle Gel |
