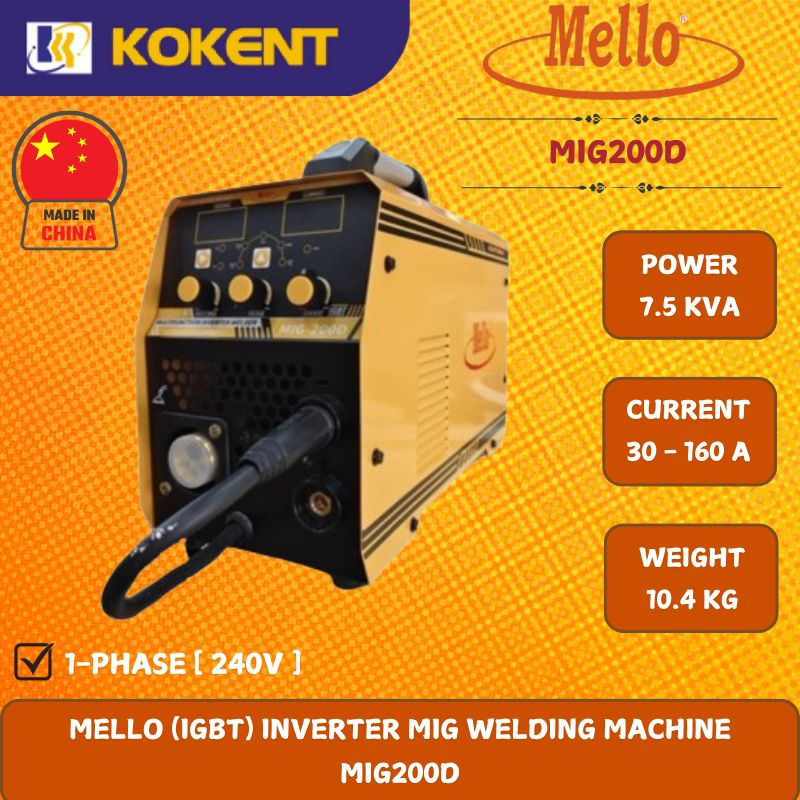

MELLO (IGBT) INVERTER MIG WELDING MACHINE MIG200D
Product Code: MIG200D
Availability: In Stock
SPECIFICATION :
| ITEM/MODEL | MIG200D |
| INPUT POWER VOLTAGE (V) / FREQ (Hz) | AC240V / 50Hz |
| RATED INPUT CURRENT (A) | 25 |
| RATED POWER CAPACITY (KVA) | 7.5 |
| CURRENT ADJUSTMENT RANGE (A) | 30-160 |
| VOLTAGE ADJUSTMENT RANGE (V) | 15-26 |
| NO-LOAD VOLTAGE (V) | 64 |
| FEEDING SPEED ADJUSTMENT RANGE (M/MM) | 2-15 |
| WELDING WIRE DIAMETER SIZE (MM) | 0.8/1.0 |
| RATED DUTY CYCLE (%) | 60 |
| EFFICIENCY (%) | 85 |
| POWER FACTOR (COS Ø) | 0.93 |
| PROTECTION CLASS | IP21S |
| INSULATION CLASS | F |
| DIMENSION (CTN)(MM)(LxWxH) | 500x335x350 |
| WEIGHT (KG) (G.W/N.W) | 10.4/7 |
| ACCESSORIES | 1. MB15 TORCH 3 METER 2. 300A EARTH CLAMP WITH 3M CABLE 3. 3M GAS HOSE C/W HOSE CLIP |
