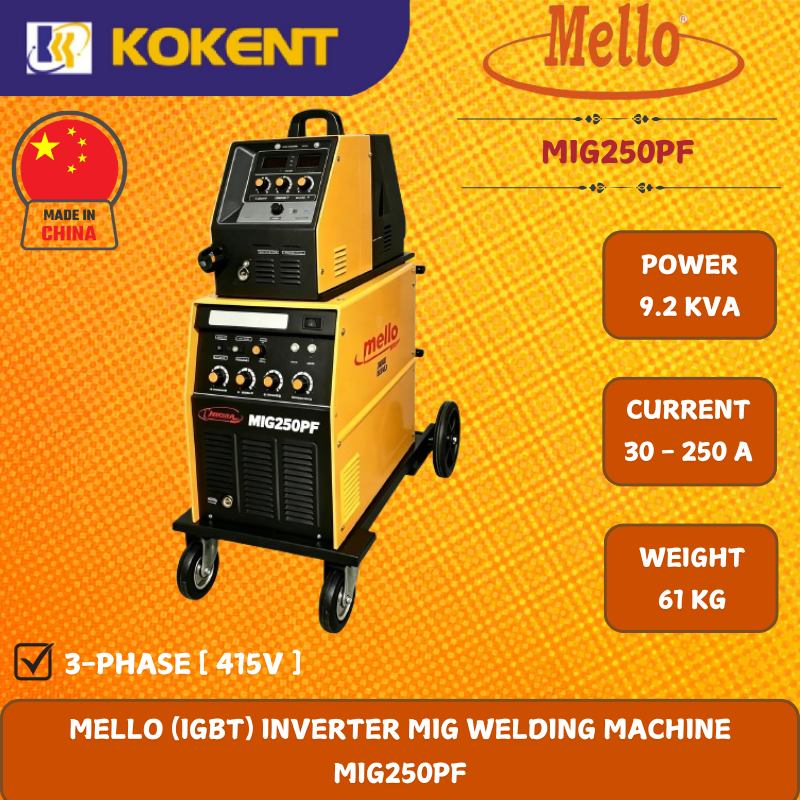

MELLO (IGBT) INVERTER MIG WELDING MACHINE MIG250PF
Product Code: MIG250PF
Availability: In Stock
MELLO MIG250PF 1PH PULSE SERIES (SINGLE PULSE)
| THECHNICAL DATA | |
| Model | MIG250PF |
| Input Power Voltage | AC380V±15% |
| Frequency | 50/60Hz |
| Rated Input Power Capacity (KVA) | 9.2 |
| Input Current (A) | 14 |
| Duty Cycle | 60% |
| Output Current Range (A) | 30-250 |
| Output Voltage Range (V) | 10-29 |
| Insulation Class | F |
| Protection Class | IP23 |
| Efficiency | 85% |
| Type of Wire Feeder | Separate |
| Dimension of Spool | 270mm |
| Postflow Time | 1+0.5 |
| Power Factor (cosØ) | 0.87 |
| Diameter of Wire Alum.(mm) | 0.8/1.0/1.2/1.6 |
| Cooled for Torch | Air Cool |
| Weight (KG) | 61 |
| Dimensions LxWxH (mm) | 495x232x495 |
| Accessories | 5M Feeder,3M MIG Torch, Argon Regulator, Earth Clamp with 2.5Mx25MM2 Cable, 1pc KDP 50, 3M 4x2.5MM2 Power Cable |
