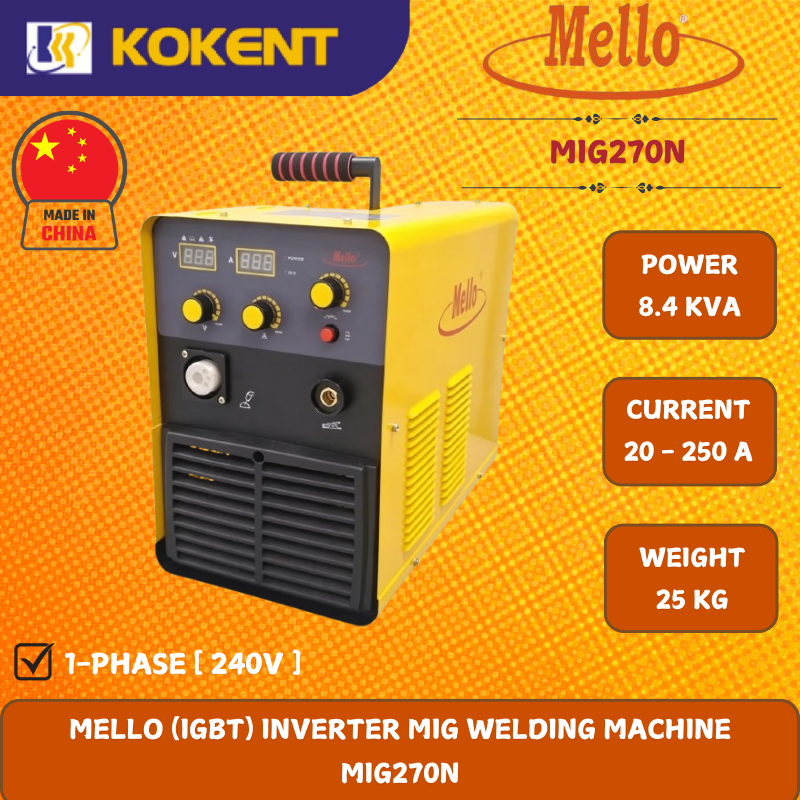

MELLO (IGBT) INVERTER MIG WELDING MACHINE MIG270N
Product Code: MIG270N
Availability: In Stock
PRODUCT SPECIFICATION :
| ITEM/MODEL | UNIT | MIG270N |
| Input Power Voltage | V | AC240V 1PH |
| Input Voltage Frequency | Hz | 50/60 |
| Rated Input Power Capacity | KVA | 8.4 |
| Rated Input Current | A | 35 |
| Output Current Range | A | 20-250 |
| No-Load Voltage | V | 62 |
| Duty Cycle | % | 60 |
| No-Load Consumption | W | 60 |
| Efficiency | % | 85 |
| Power Factor (cos Ø) | 0.93 | |
| Insulation Class | F | |
| Protection Class | IP21S | |
| Weight (G.W/N.W) | KG | 25/20 |
| Dimension (LxWxH) (CTN) | MM | 610x405x550 |
| Accessories | 1. Power Cable 2M with 13A 3-Pin Plug 2. Front Panel with KDP50 Socket 3. 300A Earth Clamp with 3M 25MM² Welding Cable & KDP50 Male Plug 4. Mello MB24 Mig Torch 4M 5. Feeder Roller V Groove 2230 (0.8/1.0MM) 6. AC36V Co2 Heater Regulator |
