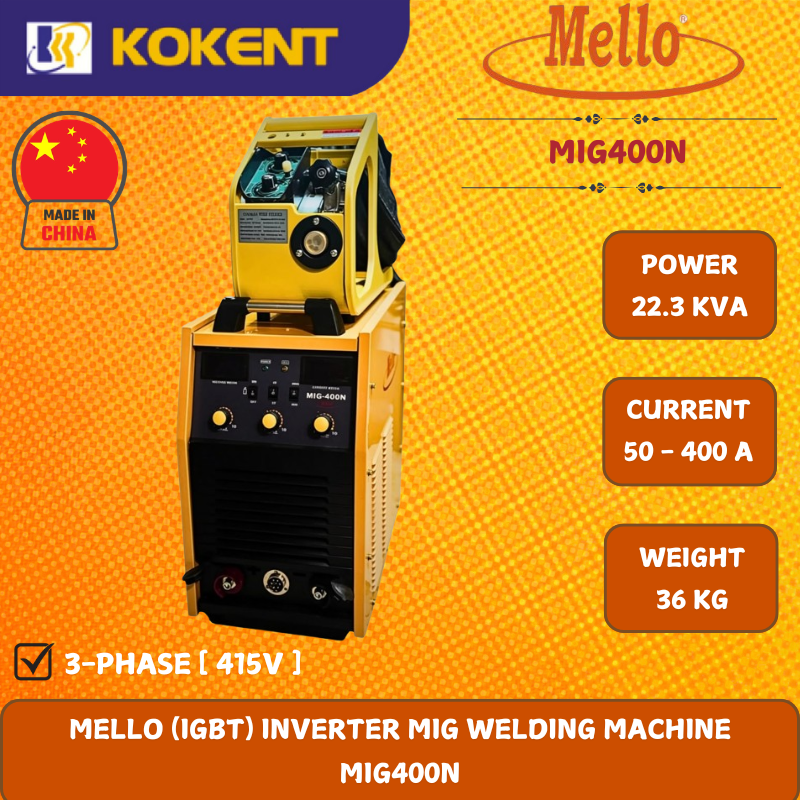

MELLO (IGBT) INVERTER MIG WELDING MACHINE MIG400N
Product Code: MIG400N
Availability: In Stock
SPECIFICATION :
| MODEL | UNIT | MIG-400N |
| POWER VOLTAGE / FREQ | V / Hz | 380V / 50/60 |
| RATED INPUT CURRENT | KVA | 22.3 |
| NO-LOAD VOLTAGE | V | 50 |
| OUPUT CURRENT ADJUSTMENT | A | 50-400 |
| OUTPUT VOLTAGE | V | 16.5-31.5 |
| DUTY CYCLE | % | 60 |
| EFFICIENCY | % | 85 |
| POWER FACTOR | 0.93 | |
| WIRE FEED SPEED | M/MIN | 3-15 |
| POST FLOW TIME | S | 1.5+0.5 |
| WELDING WIRE DIAMETER | MM | 1.0/1.2 |
| INSULATION CLASS | F | |
| PROTECTION CLASS | IP21 | |
| WELDING THICKNESS | MM | MORE THAN 0.8MM |
| OUTPUT CABLE | MM² | MORE THAN 35MM² |
| MACHINE / FEEDER | ||
| WEIGHT | KG | 36 / 14 |
| DIMENSION (LxWxH) | MM | 550x280x545 / 550x290x360 |
| ACCESSORIES | 1. 4 CORE POWER CABLE 3M 2. 500A EARTH CLAMP WITH 3M 25MM² WELDING CABLE 3. 500A HOLDER WITH 3M 25MM² WELDING CABLE 4. QTB350 WELDING TORCH 3M (EURO CONNECTOR) 5. FEEDER ROLLER C/W TEETH 1.0-1.2 , 1PCS 6. AC36V REGULATOR WITH HEATER |
