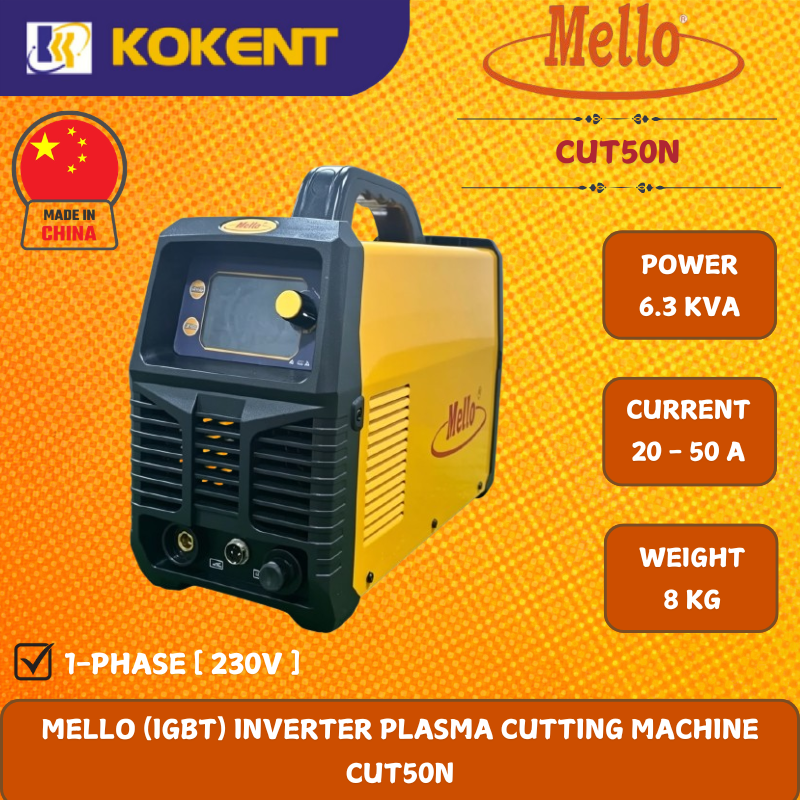

MELLO (IGBT) INVERTER PLASMA CUTTING MACHINE CUT50N
Product Code: CUT50N
Availability: In Stock
MELLO CUT50N(IGBT) 1 PHASE INVERTER AIR PLASMA CUTTING MACHINE
SPECIFICATION
| MODEL/ITEM | UNIT | CUT50N |
| INPUT POWER VOLTAGE/FREQUENCY | V/Hz | AC220V / 50/60 |
| RATED INPUT POWER CAPACITY | KVA | 6.3/3 |
| RATED INPUT CURRENT | A | 28.7 |
| OUTPUT CURRENT RANGE | A | 20-50 |
| RATED OUTPUT VOLTAGE | V | 100 |
| NO-LOAD VOLTAGE | V | 220 |
| DUTY CYCLE | % | 60 |
| EFFICIENCY | % | 85 |
| POWER FACTOR | 0.93 | |
| BURNER INTER DIAMETER | MM | 1.0 |
| PROTECTION CLASS | IP21 | |
| ARCING WAY | TOUCHED | |
| PRESSURE OF AIR COMPRESSOR | KG | 4-5 |
| CUTTING THICKNESS | MM | 1-16 |
| WEIGHT (G.W/N.W) | KG | 8/5 |
| DIMENSION (LxWxH)(CTN) | MM | 430x380x350 |
| DIMENSION (LxWxH)(M/C) | MM | 380x140x240 |
| ACCESSORIES | 1. POWER CABLE 3M WITH 13A 3-PIN PLUG 2. 300A EARTH CLAMP WITH 3M 16MM² WELDING & KDP16 PLUG 3. PT31 PLASMA TORCH 3M C/W RUBBER COVER 4. 3M AIR HOSE & HOSE CLIP 4PCS 5. AIR REGULATOR & REGULATOR CONNECTOR 2PCS |
