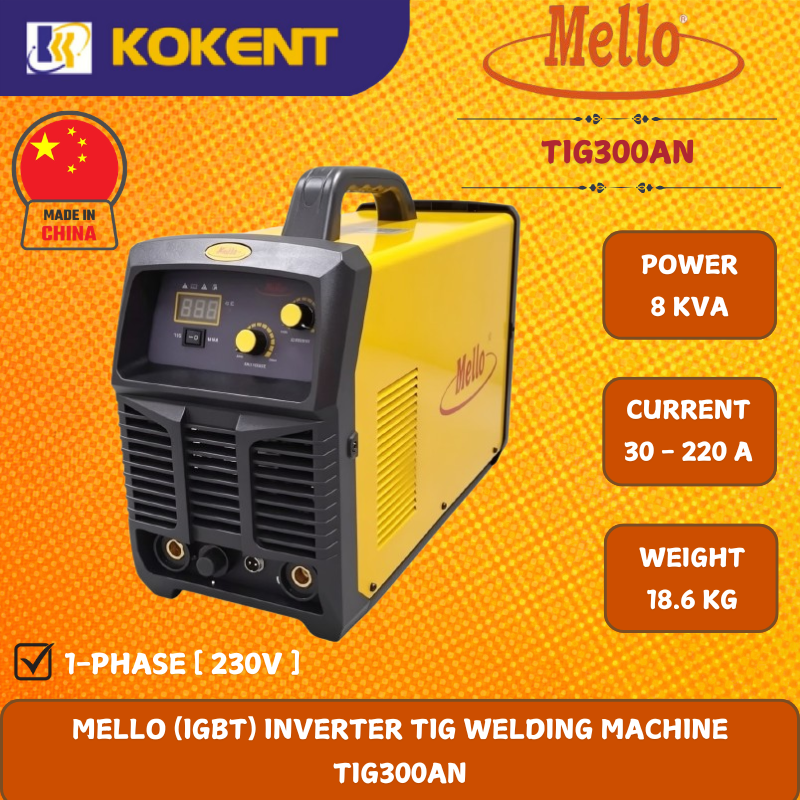

MELLO (IGBT) INVERTER TIG WELDING MACHINE TIG300AN
Product Code: TIG300AN
Availability: In Stock
MELLO TIG300AN(IGBT) 1PH TIG WELDING MACHINE C/W ACCS (WP26 DOUBLE LINER 7.5M TORCH)
PRODUCT SPECIFICATION :
| ITEM/MODEL | UNIT | TIG300AN |
| MMA / TIG | ||
| INPUT POWER VOLTAGE | V | AC240V 1PH |
| INPUT VOLTAGE FREQUENCY | Hz | 50/60 |
| RATE INPUT POWER CAPACITY | KVA | 8 / 6 |
| NO-LOAD VOLTAGE | V | 74 |
| RATED INPUT CURRENT | A | 33.4 / 24.8 |
| RATED OUTPUT VOLTAGE | V | 28.8 / 19.6 |
| RATED OUTPUT CURRENT | A | 30~220 / 10~240 |
| DUTY CYCLE | % | 60 |
| ARC-STRIKING | HF | |
| EFFICIENCY | % | 85 |
| POWER FACTOR | 0.93 | |
| INSULATION CLASS | F | |
| PROTECTION CLASS | IP21S | |
| WEIGHT (G.W/N.W) | KG | 18.6/13.8 |
| DIMENSION (LxWxH)(CTN) | MM | 640x310x440 |
| WELDING THICKNESS | MM | 0.5-12 |
| ACCESSORIES | 1. POWER CABLE 2M WITH 3 PIN PLUG 13A 2. FRONT PANEL WITH KDP50 SOCKET 3. EARTH CLAMP WITH 3M 25MM WELDING CABLE & KDP50 PLUG 4. WP26 TIG TORCH (SINGLE LINE) 4M WITH RUBBER COVER AND SET OF ACCS : LONG BACK CAP,CERAMIC CUP, 2.0 COLLET BODY , 2.0 COLLET 5. ARGON REGULATOR |
