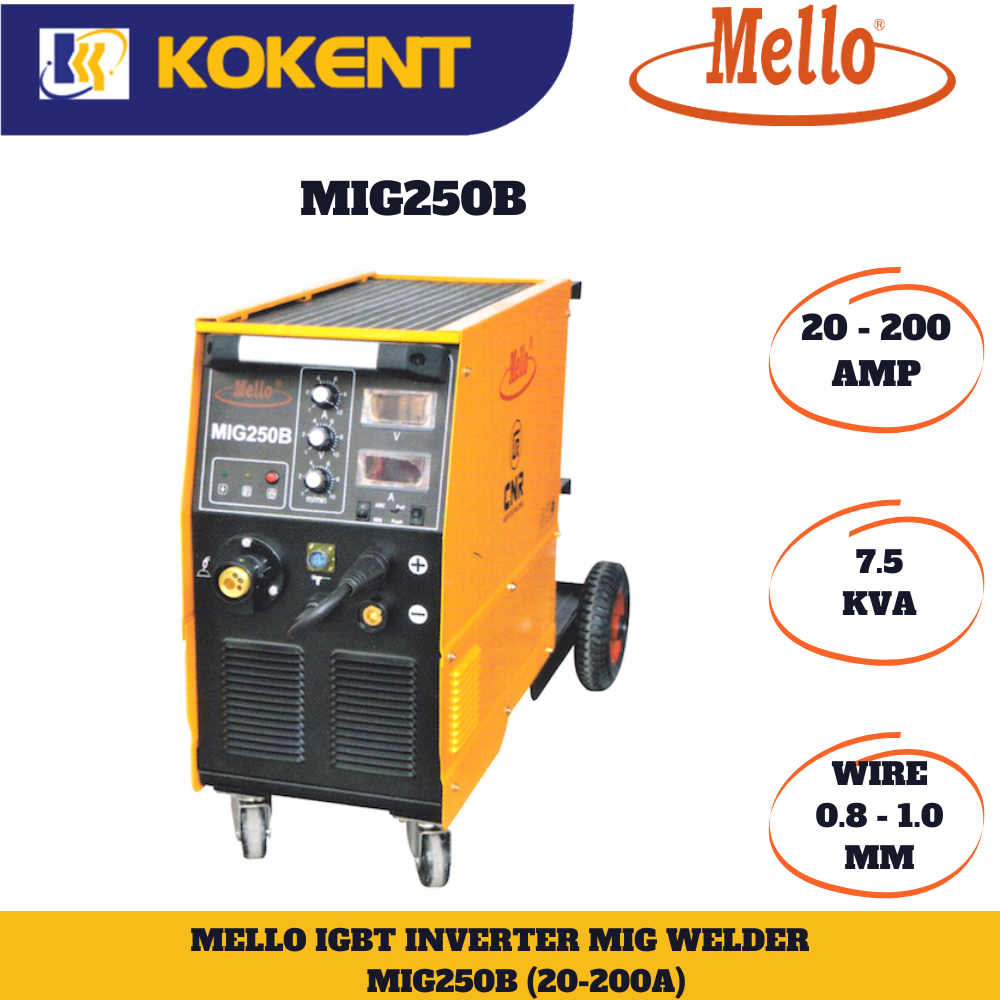

MELLO MIG250B(IGBT) 1PH INVERTER CO2 GAS SHIELD WELDING MACHINE
Product Code: MIG250B
Availability: Pre Order
| ITEM\MODEL | UNIT | MIG250B |
| Input Power Voltage / Freq. | V/Hz | AC240V 50/60 |
| Rate Input Power Capacity | KVA | 7.5 |
| No-Load Voltage | V | 50±2 |
| Output Current Range | A | 20-200 |
| Output Voltage Range | V | 15-26 |
| Duty Cycle (25ºc) | % | 60 |
| Efficiency | % | 85 |
| Feeding Speed | M/MIN | 2.5-16 |
| Type of Wire Feeder | Inside | |
| Diameter of Spool | mm | 270 |
| Insulation Class | F | |
| Weight | KG | 46.5 |
| Dimension (L x W x H) | mm | 880 x 269 x 616 |
| Protection Class | IP23 | |
| Postflow Time | S | 1±0.5 |
| Welding Thickness | mm | Above 0.8 |
| Diameter of Wire | mm | 0.8/1.0 |
| Accessories | MB-24 4M MIG Torch, CO2 Regulator with Heater, 2 pcs KDP-50, Earth Clamp with 3Mx25MM2 Cable, UK Plug with 3M 3X2.5MM2 Power Cable. |
