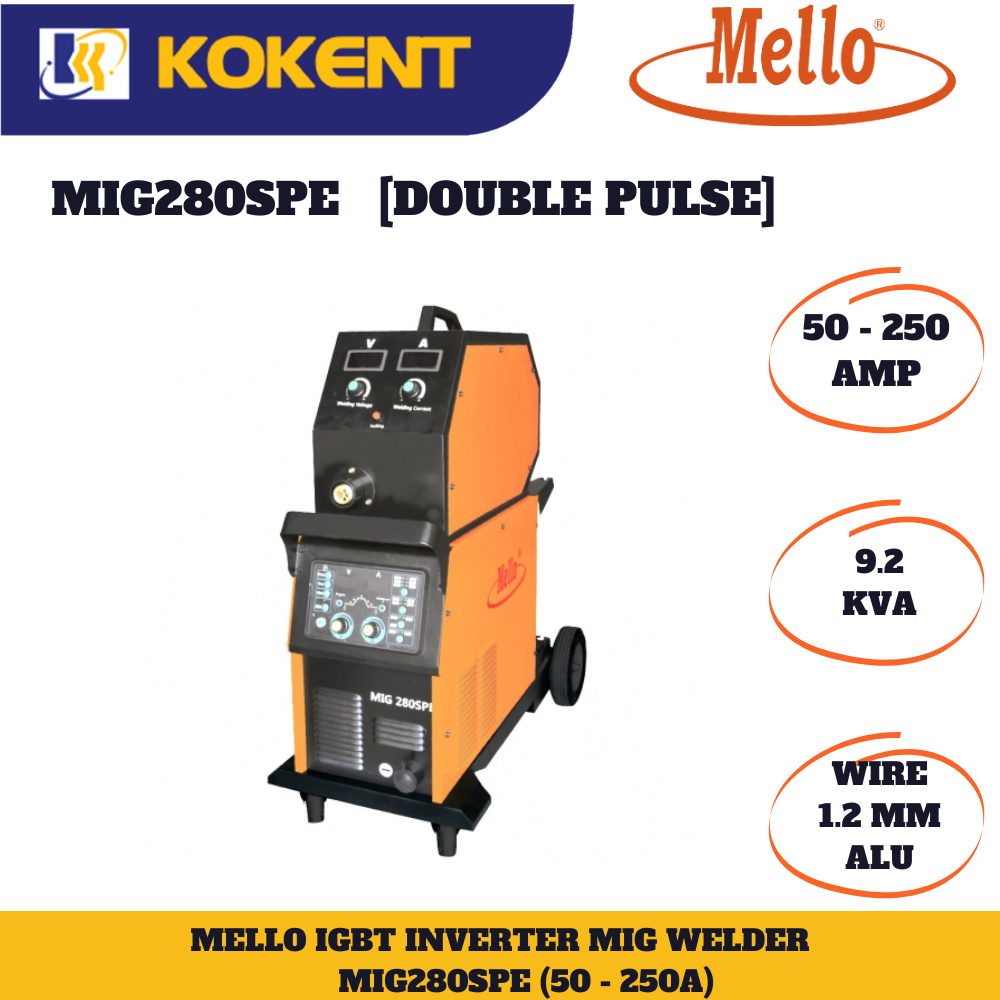

MELLO MIG280SPE(IGBT)1PH INVERTER DOUBLE PULSE WELDING MACHINE

MELLO MIG280SPE(IGBT)1PH INVERTER DOUBLE PULSE WELDING MACHINE
MELLO MIG280SPE(IGBT)1PH INVERTER DOUBLE PULSE WELDING MACHINE

MELLO MIG280SPE(IGBT)1PH INVERTER DOUBLE PULSE WELDING MACHINE

Product Code: MIG280SPE
Availability: Pre Order
Loading ...
Share:
MODEL : MIG280PE
Special for Superthin 0.45mm Alum.
Functions & Features
1. New Appearance Design,Compact Digital Cntrol Panel.
2. Separated Double Wheel Driving Wire Feeder,Ensure Wire Feeding Stable.
3. SYN Adjustment,Easy To Operate With Memory Function,Six Welding parameters Can Be Saved.
4. Single Pulse And Double Pulse Can Be Chosen,Especially Suitable For Super-thin Aluminum Plate Of 0.45mm Welding.
5. With Trolly,Easy To Move,High convenience For MIG Welding.
6. International brand IGBT And Rectify Tube.
7. High Duty Cycle,Efficiency Is 3 Times Of Traditional Argon Welding,Energy Saving, High Reliability.
8. Quick Welding Speed,Little Splash,Deep Pool,Good Welding Apperance.



ITEM\MODEL UNIT MIG 280SPE
Input Power Voltage / Freq. V/Hz AC240V 50/60
Rate Input Power Capacity KVA 9.2
Rate Output Voltage V 45
Duty Cycle (25ºc) % 60
Output Current Range A 50-250
Output Voltage Range V 16.5-28
Insulation Class   F
Protection Class   IP23
Dimension (L x W x H) mm 940 x 460 x 1100
Weight KG 69.5
Efficiency % 85
Feeding Speed M/MIN 1.8-21
Type of Wire Feeder   Separate
Diameter of Spool mm 270
Water Cooler Tank   (Optional)
Power Factor (cos ø)   0.87
Diameter of Wire (Alum.) mm 1.2
Cooled for Torch   Air Cool
Accessories   3M Feeder, MB-24 3M MIG
Torch, Argon Regulator, Earth Clamp
with 2.5M x 35MM2 Cable,
2.5M 3 x 4MM2 + 1 X 2.5MM2 Power Cable.



MIG280SPE ANGLE WELD STAINLESS STEEL 0.73MMMIG280SPE ANGLE WELD ALU 3MMMIG280SPE ANGLE WELD ALU 1.9MM
