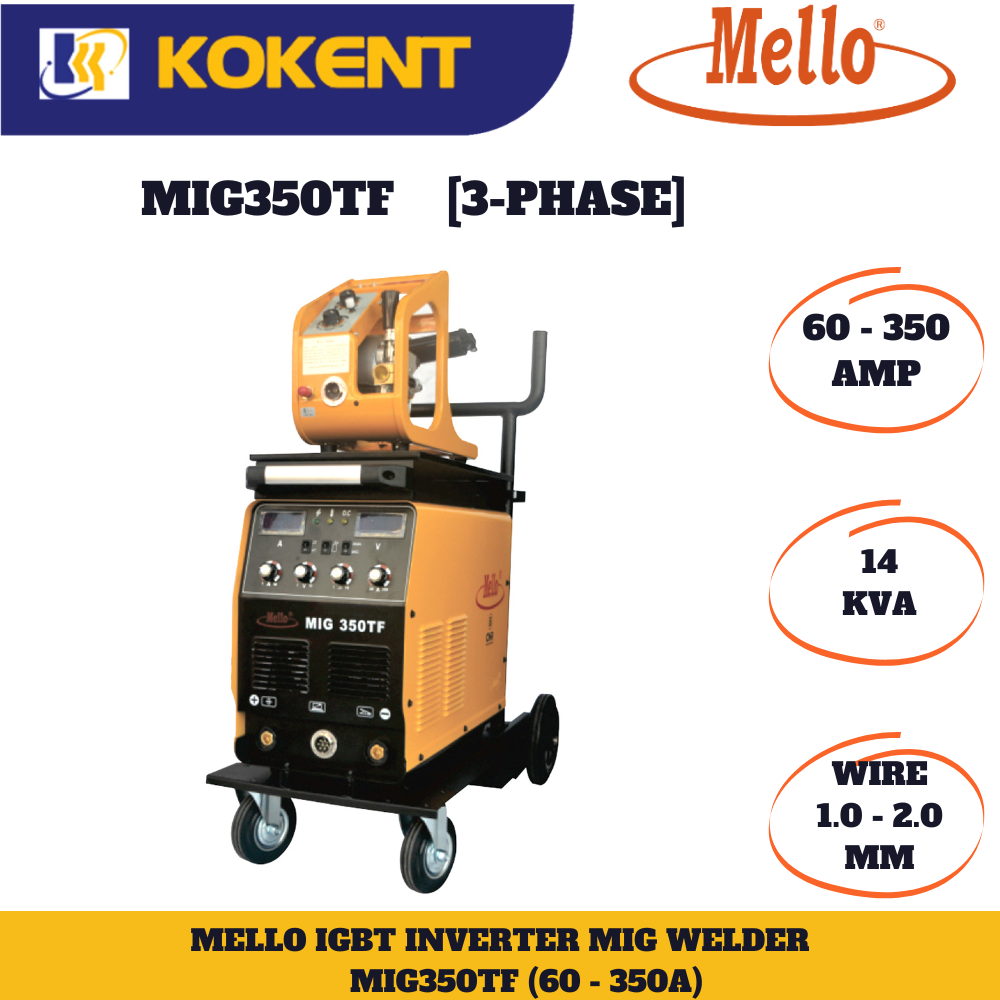

MELLO MIG350TF(IGBT)3PH INVERTER CO2 GAS SHIELD WELDING MACHINE
Product Code: MIG350TF
Availability: Pre Order
| ITEM \ MODEL | UNIT | MIG 350TF |
| Input Power Voltage / Freq. | V/Hz | AC415V 50/60 |
| Rate Input Power Capacity | KVA | 14 |
| No-Load Voltage | V | 60±2 |
| Output Current Range | A | 60-350 |
| Output Voltage Range | V | 15-36 |
| Duty Cycle (25°c) | % | 60 |
| Efficiency | % | 85 |
| Feeding Speed | M/MIN | 1.5-16 |
| Type of Wire Feeder | Separate | |
| Diameter of Spool | mm | 270 |
| Insulation Class | F | |
| Weight | KG | 47.7 |
| Dimension (L x W x H) | mm | 570 x 285 x620 |
| Protection Class | IP23 | |
| Postflow Time | S | 1±0.5 |
| Welding Thickness | mm | Above 1.0 |
| Diameter of Wire | mm | 1.0/2.0 |
| Accessories | 8M SB-10 Feeder, 4M MIG Torch, CO2 Regulator with Heater, Earth Clamp with 3MX35MM2 Cable, 3M 4X4.0MM Power Cable. |
