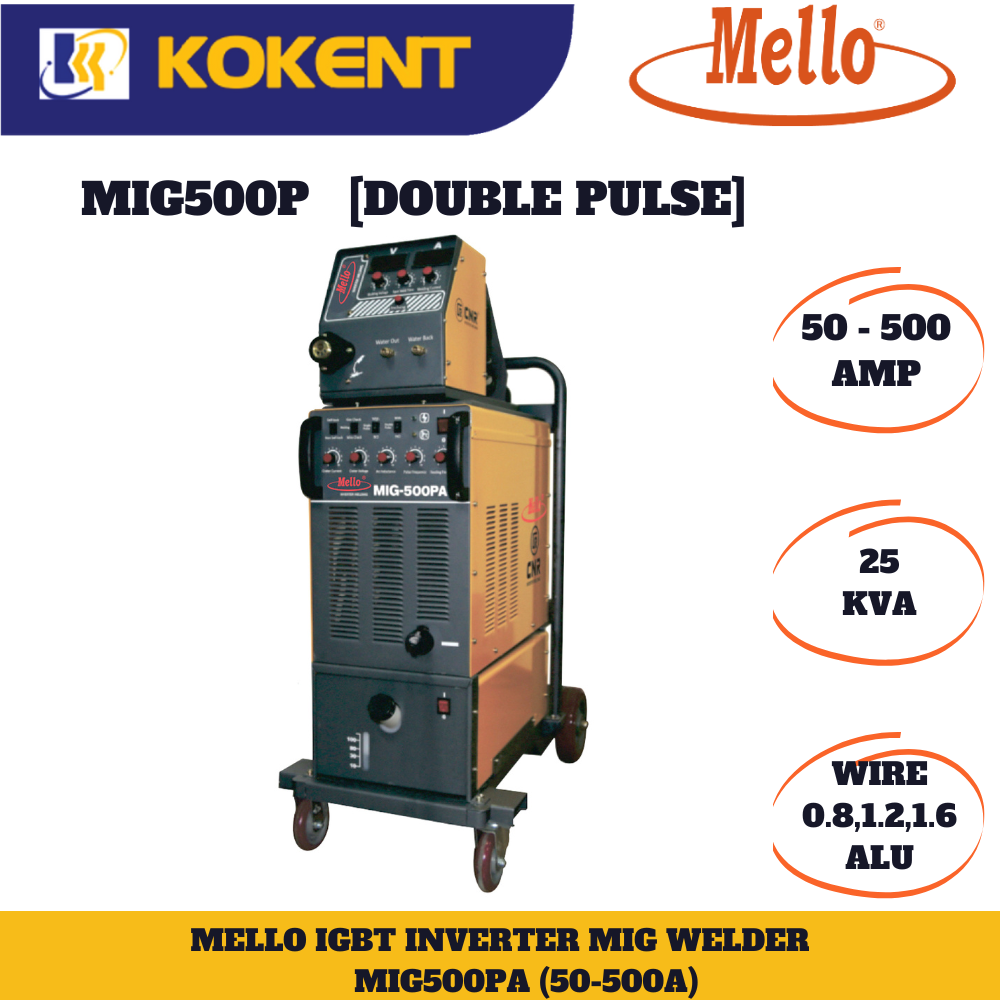

MELLO MIG500PA(IGBT) 3 PHASE PULSE INVERTER WELDING MACHINE
Product Code: MIG500PA
Availability: Pre Order
| ITEM \ MODEL | UNIT | MIG 500PA |
| Input Power Voltage / Freq. | V/Hz | AC415V 50/60 |
| Rate Input Power Capacity | KVA | 25 |
| Rated Output Voltage | V | 70 |
| Duty Cycle (25°c) | % | 60 |
| Output Current Range | A | 50-500 |
| Output Voltage Range | V | 15-50 |
| Insulation Class | H/B | |
| Protection Class | IP23 | |
| Dimension (L x W x H) | mm | 636 x 322 x 588 |
| Weight | KG | 53 |
| Efficiency | % | 85 |
| Feeding Speed | M/MIN | 2.5-13 |
| Type of Wire Feeder | Separate | |
| Diameter of Spool | mm | 270 |
| Water Cooler Tank | Build In | |
| Power Factor (cos Φ) | 0.87 | |
| Diameter of Wire (Alum.) | mm | 0.8/1.0/1.2/1.6 |
| Cooled For Torch | Water Cool / AirCool | |
| Accessories | 5M Feeder, 3M MIG Torch, Argon Regulator, Earth Clamp with 2.5MX70MM2 Cable, 1pc KDP 70, 3M 4X4MM2 Power Cable. |
