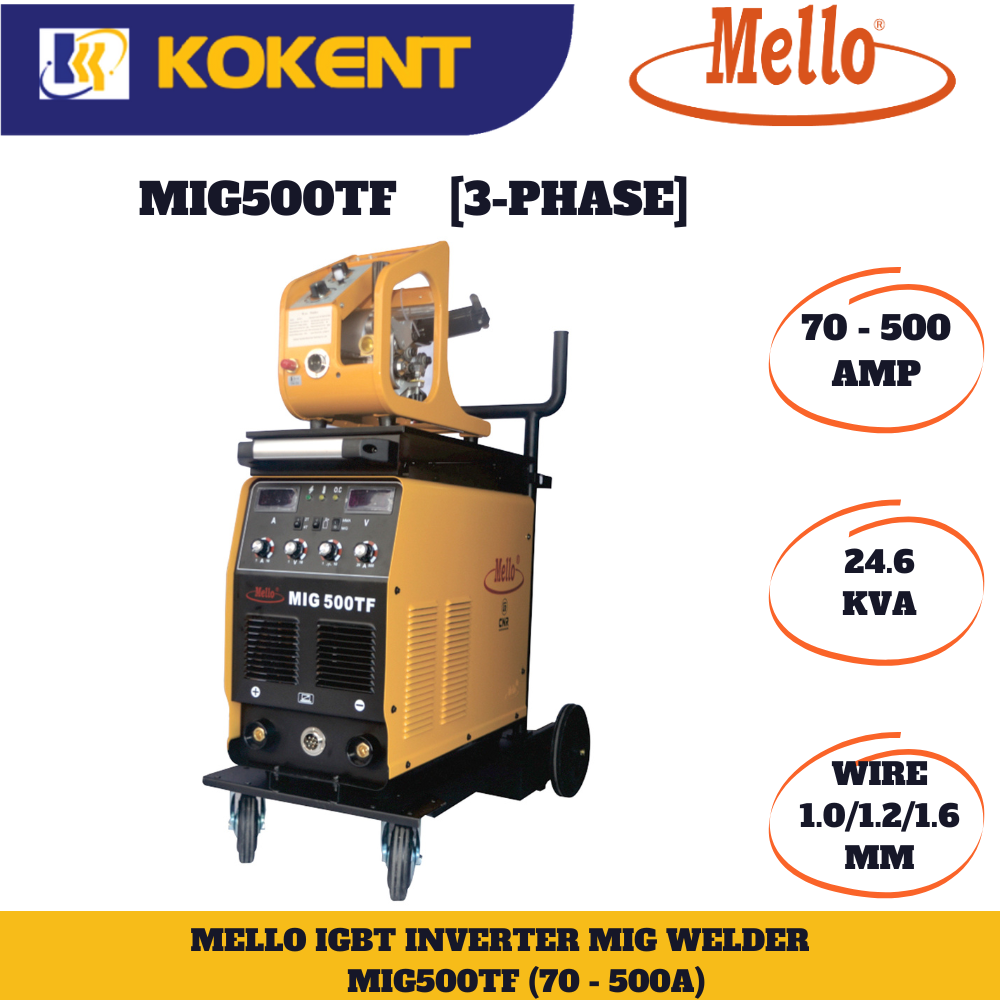

MELLO MIG500TF (IGBT) 3 PHASE INVERTER CO2 GAS SHIELD WELDING MACHINE

MELLO MIG500TF (IGBT) 3 PHASE INVERTER CO2 GAS SHIELD WELDING MACHINE
MELLO MIG500TF (IGBT) 3 PHASE INVERTER CO2 GAS SHIELD WELDING MACHINE

MELLO MIG500TF (IGBT) 3 PHASE INVERTER CO2 GAS SHIELD WELDING MACHINE

Product Code: MIG500TF
Availability: Pre Order
Loading ...
Share:
ITEM \ MODEL  UNIT  MIG 500TF
Input Power Voltage / Freq. V/Hz AC415V 50/60
Rate Input Power Capacity KVA 24.6
No-Load Voltage V 77±2
Output Current Range A 70-500
Output Voltage Range V 15-40
Duty Cycle (25°c) % 60
Efficiency % 85
Feeding Speed M/MIN 1.5-16
Type of Wire Feeder   Separate
Diameter of Spool mm 270
Insulation Class   F
Weight KG 48
Dimension (L x W x H) mm 610 x 335 x640
Protection Class   IP23
Postflow Time S 1±0.5
Welding Thickness mm Above 1.0
Diameter of Wire mm 1.0/1.2/1.6
Accessories   8M SB-10 Feeder, 4M MIG Torch, CO2 Regulator with Heater, Earth Clamp with 3MX50MM2 Cable, 3M 4X4.0MM2 Power Cable.
