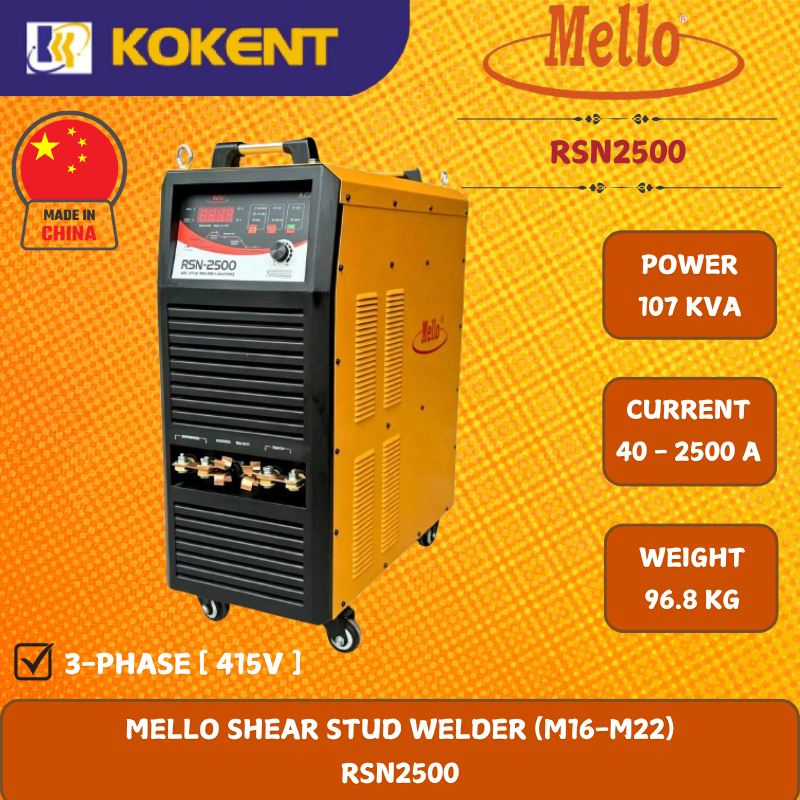

MELLO SHEAR STUD WELDER (M16-M22) RSN2500
Product Code: RSN2500
Availability: In Stock
RSN2500 SHEAR STUD WELDER (M16-M22) , 96.8Kg
| MODEL/ITEM | UNIT | RSN-2500 | |
| Input Voltage / Frequency | V/Hz | 380V / 50Hz | |
| Rated Input Current | A | 162.5 | |
| Rated Input Power | KW | 94 | |
| Rated Input Capacity | KVA | 107 | |
| Rated Welding Voltage | VDC | 32 | |
| Efficiency | % | 80 | |
| Power Factor ( COS Ø ) | 0.92 | ||
| Welding Current Range | A | 40-2500 | |
| Stud Diameter | MM | 6~25 | |
| Stud Length | MM | 400 | |
| Protection Class | F | ||
| Insulation Class | IP21S | ||
| Weight ( G.W/N.W )(M/C) | KG | 96.8 | |
| Dimension (LxWxH)(CTN) | MM | 780x380x960 | |
| Dimension (LxWxH)(M/C) | MM | 750x355x930 | |
| Accessories | 1. Trigger Wire 40M w/o Socket | ||
| 2. Stud Welding Torch Head | |||
| 3. 700A Earth Clamp with 3m 50mm² | |||
| Welding Cable & Cable Lug SC70-10, 2Pcs | |||
| 4. 40m 95mm² Torch Welding Cable & | |||
| Cable Lug SC120-12 | |||
| 5. Optional Accs: | |||
| * Collet Chuck,Pad Plate (PAIR) | |||
| Size : 16mm,19mm,22mm | |||
