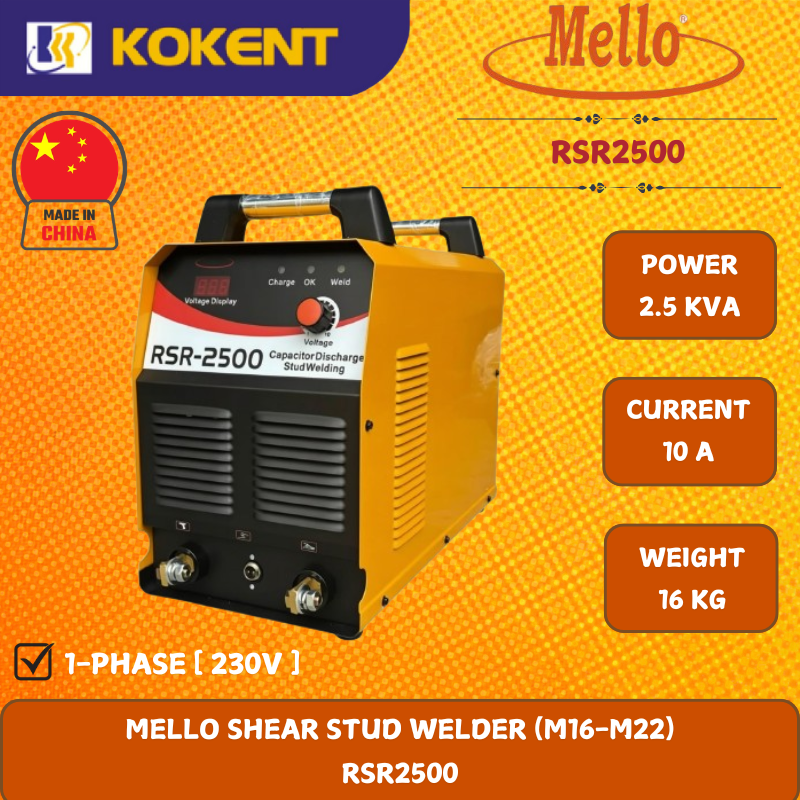

MELLO SHEAR STUD WELDER (M16-M22) RSR2500
MELLO SHEAR STUD WELDER (M16-M22) RSR2500

MELLO SHEAR STUD WELDER (M16-M22) RSR2500

Product Code: RSR2500
Availability: In Stock
Loading ...
017 432 8850019 209 0701
Share:

RSR2500 CAPACITOR DISCHARGED (CD) STUD WELDER (M3-M8) , 23.3Kg

Model  Description
RSR-2500 CAPACITOR DISCHARGED STUD WELDER
Power Voltage (V) 220V
Frequency (Hz) 50/60
Rated Input Current (A) 10
Rated Input Capacity (KVA) 2.5
Charging Voltage (V) 40-200 Stepless Speed Regulation
Stud Diameter  M3-M10
Welding Material  Low Carbon Steel/ Stainless Steel/ Aluminium/ Brass
Welding Speed  10-20 pcs/min depends on the stud diameter
Power Mode Capacitor Energy Storage
Welding Energy (J W/S) 2500
Capacitor Capacity (UF) 9900
Welding Productivity (Min) 15min
Protection Grade IP23S
Weight (Kg) 16
Dimension (L*W*H)(mm) 550*250*440
Accessories  1* 4M Stud Welding Gun
  1* Earth Clamp with 16mm² Cable
  3* Chuck Head for Stud
  1* Box Socket
  1* Allen Key
