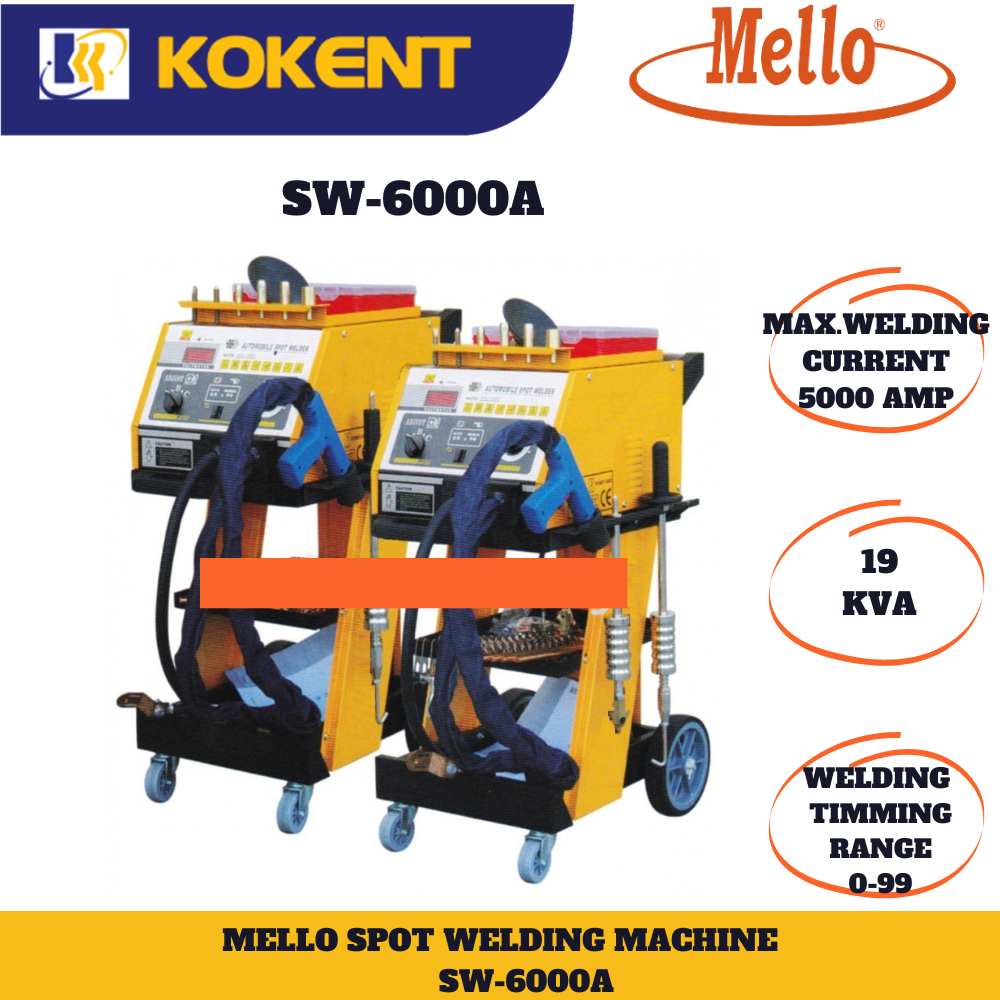

MELLO SW6000A SPOT WELDING MACHINE
Product Code: SW6000A
Availability: Pre Order
| ITEM\MODEL | UNIT | SW-6000A |
| Input Power Voltage / Freq. | V/Hz | AC220/380V 50/60 |
| Input Current | A | 50 |
| Rated Input Power Capacity | KVA | 19 |
| Max Welding Current | A | 5000 |
| Output Voltage | V | Carbon Rod Heating AC6-10V, Washer Melting Rate AC1-12V, Butt Weld AC1-13V |
| Operation Way | Continuity | |
| Welding Timing Range | M/MIN | 0-99 |
| Welding Current Regulation | Separate | |
| Welding Thickness | mm | A B C |
| Cable Length | mm | 2300+1900 |
| Vacuum Suction | KG | 150 |
| Claw Puller | Available | |
| Spot Hammer Dent Pulling | Available | |
| Weight | KG | 70 |
| Dimension (L x W x H) | mm | 620 x 450 x 980 |
