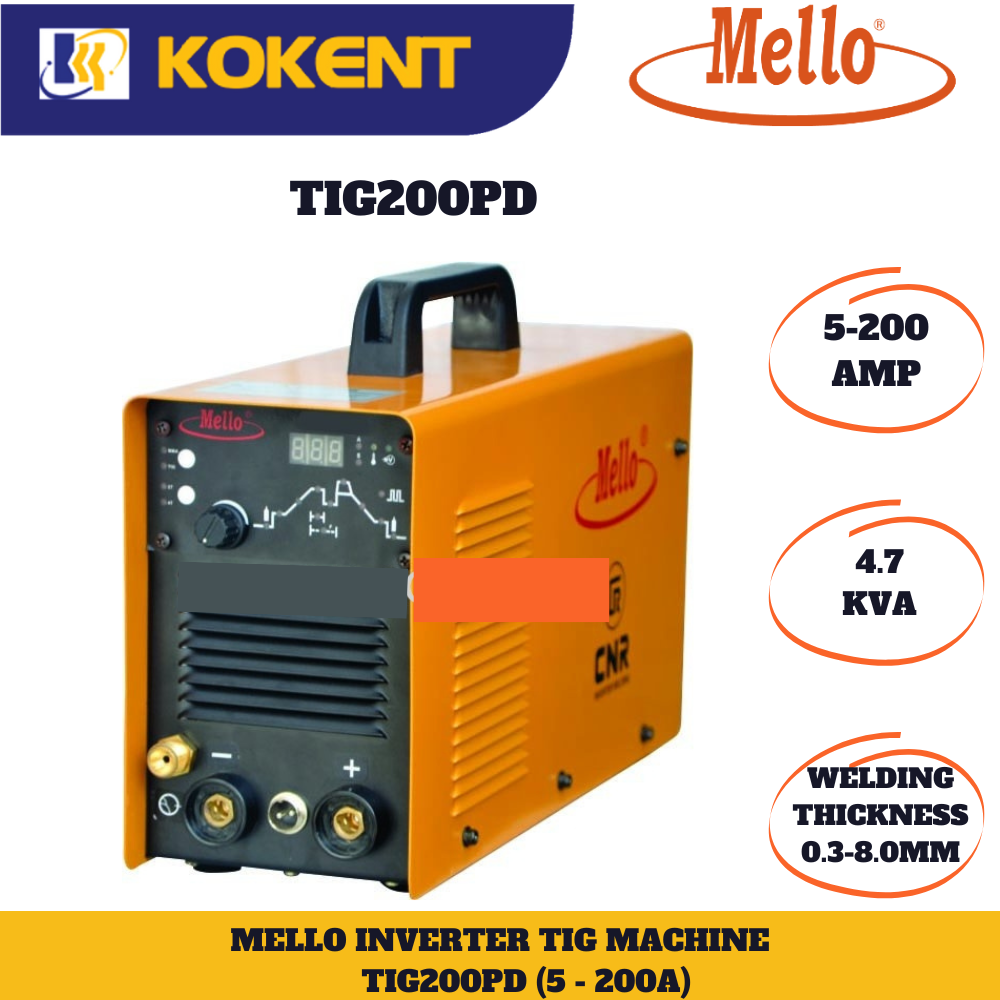

MELLO TIG-200PD INVERTER DC DIGITAL TIG/MMA PULSE WELDING MACHINE
Product Code: TIG200PD
Availability: Pre Order
| ITEM \ MODEL | UNIT | TIG 200PD |
| Input Power Voltage / Freq. | V/Hz | AC240V 50/60 |
| Rate Input Power Capacity | KVA | 4.7 |
| No-Load Voltage | V | 56 |
| Output Current Range | A | 5-200 |
| Rated Output Voltage | V | 18 |
| Duty Cycle (25°c) | % | 60 |
| Arc-Starting | HF | |
| Efficiency | % | 85 |
| Power Factor (cos Φ) | 0.93 | |
| Insulation Class | F | |
| Weight | KG | 7.3 |
| Dimension (L x W x H) | mm | 400 x 135 x 230 |
| Protection Class | IP23 | |
| Preflow Time | S | 0-1 |
| Down-Slope Time | S | 0-5 |
| Postflow Time | S | 0.1-10 |
| Base Current | A | 5-200 |
| Pulse Frequency | Hz | 0.5-100 |
| Welding Thickness | mm | 0.3 - 8 |
| Accessories | 4M SR-17 Separated Torch, 1pc KDP-16, 3MX16MM2 Earth Cable + Clamp, UK Plug with 3M 3X2.5MM2 Power Cable. |
