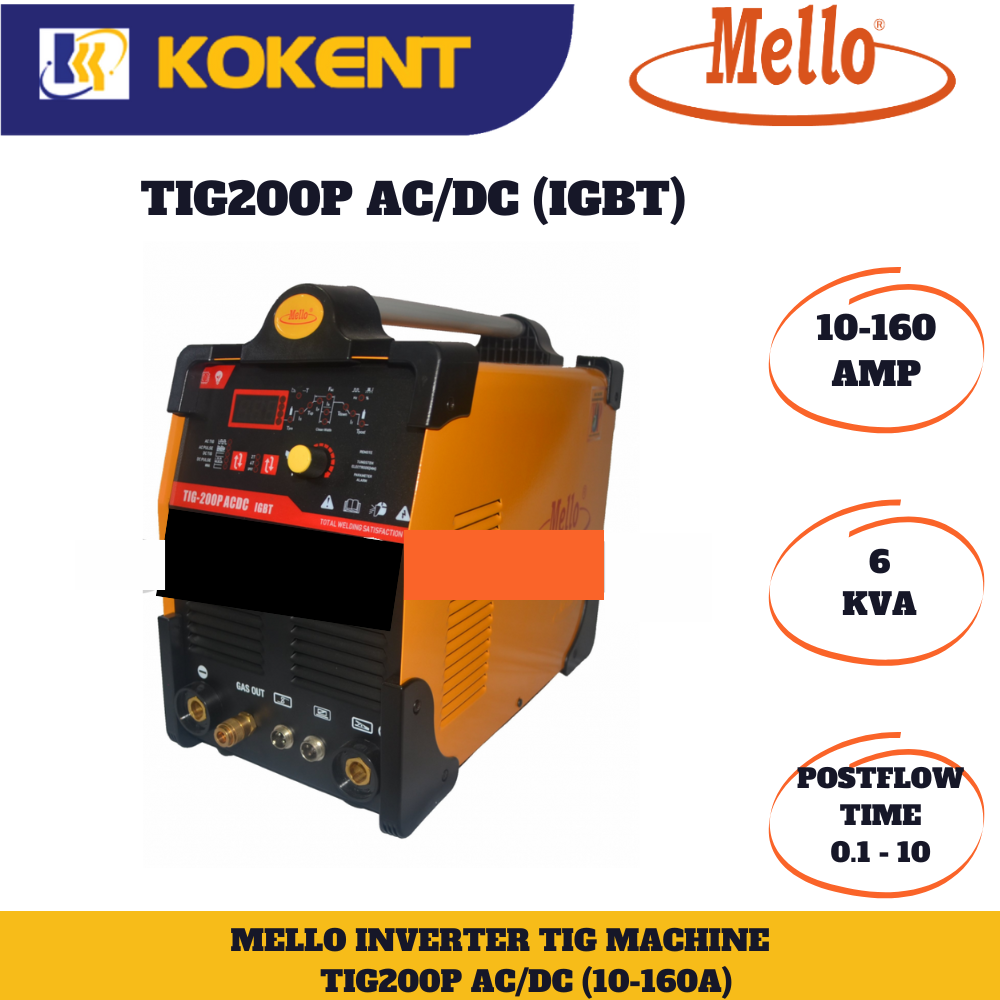

MELLO TIG200P AC/DC(IGBT) 1 PHASE SQUARE WAVE PULSE TIG WELDING MACHINE
Product Code: TIG200P
Availability: Pre Order
| ITEM/MODEL | UNIT | TIG200P AC/DC (IGBT) |
| Input Power Voltage / Freq. | V/Hz | AC240V/ 50Hz |
| Rate Input Power Capacity | KVA | 6 |
| No-load Voltage | V | 56 |
| Output Current Range | A | MMA : 10~160 TIG : 5~200 |
| Duty Cycle (25ºC) | % | 60 |
| Arc Force Current Range | A | 0-40 |
| Arc-Starting | HF | |
| Efficiency | % | 85 |
| Power Factor (cosØ) | 0.93 | |
| Insulation Class | B | |
| Weight | KG | 10.6 (N.W) / 15.8 (G.W) |
| Dimension (LxWxH) (CTN) | mm | 520 x 315 x 435 |
| Protection Class | IP21S | |
| Pre-flow time | S | 0.1-10 |
| Down-slope Time | S | 0-15 |
| Postflow Time | S | 0.5-15 |
| Remote Control | YES | |
| Base Current | A | 5~200 |
| Pulse Frequency | Hz | 0.2~20 |
| Accesories | 1) 3 core power cable with 13A 3 pin plug. 2) 300A Earth Clamp with 3M 25mm² welding cable & KDP50 plug. 3) 300A Electrode Holder with 3M 25mm² welding cable & KDP50 plug. 4) WP26 TIG Torch(Double line) 4M (Rubber cover) with KDP50 plug & set accessories & 1pc grey Tungsten 2.4mm. 5) 3M 5/16'' hose with 2pcs hose clip. |
