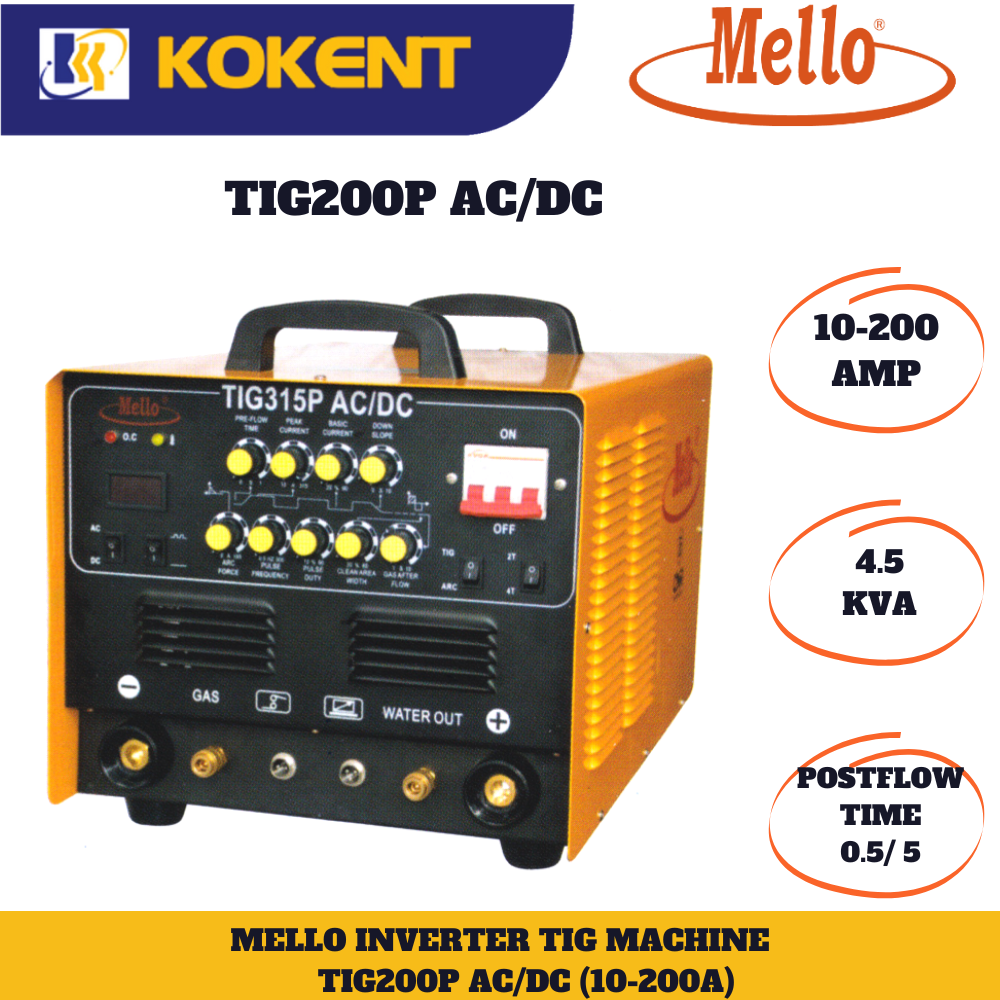

MELLO TIG200P AC/DC(MOS) 1 PHASE SQUARE WAVE PULSE TIG WELDING MACHINE
Product Code: TIG200P AC/DC
Availability: Pre Order
| ITEM \ MODEL | UNIT | TIG 200P AC/DC |
| Input Power Voltage / Freq. | V/Hz | AC240V 50/60 |
| Rate Input Power Capacity | KVA | 4.5 |
| No-Load Voltage | V | 56 |
| Output Current Range | A | 10-200 |
| Duty Cycle (25°C) | % | 60 |
| Arc-Starting | HF | |
| Efficiency | % | 85 |
| Power Factor (cos Φ) | 0.93 | |
| Insulation Class | F | |
| Weight | KG | 20 |
| Dimension (L x W x H) | mm | 509 x 328 x 330 |
| Protection Class | IP23 | |
| Preflow Time | S | 1-10 |
| Clean Width | % | 20-80 |
| Down-Slope Time | S | 0-10 |
| Postflow Time | S | 1-10 |
| Remote Control | YES | |
| Base Current | A | 10-200 |
| Pulse Frequency | Hz | 0.5-10 |
| Welding Thickness | mm | 0.5 - 5 |
| Water Cooler Tank | Optional | |
| Accessories | 4M SR-26 TIG Seperated Torch, 1pc KDP-50, Earth Clamp with 3MX25MM2 Cable, 3M 3X2.5MM2 Power Cable. |
