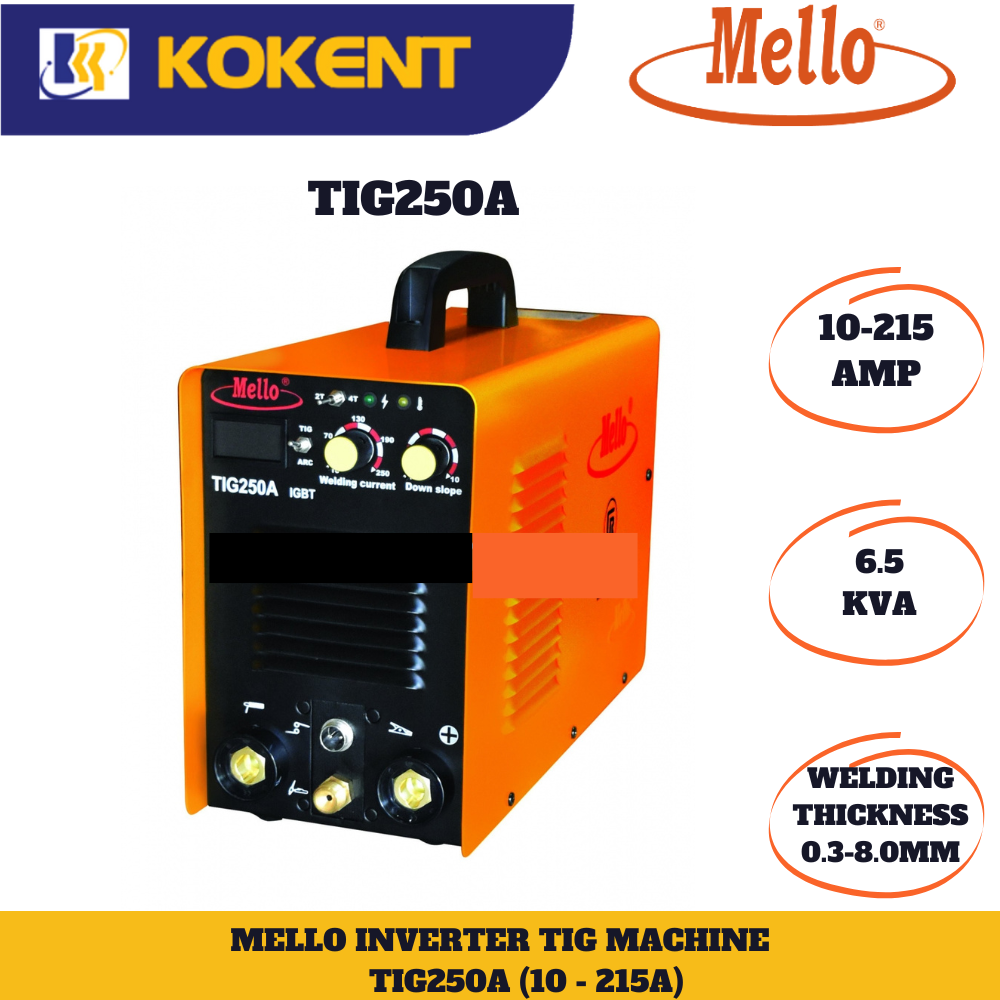

MELLO TIG250A(IGBT) 1 PHASE TIG WELDING MACHINE
MELLO TIG250A(IGBT) 1 PHASE TIG WELDING MACHINE

MELLO TIG250A(IGBT) 1 PHASE TIG WELDING MACHINE

Product Code: TIG250A
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:
ITEM\MODEL UNIT TIG 250A
Input Power Voltage / Freq. V/Hz AC240V 50/60
Rate Input Power Capacity KVA 6.5
No-Load Voltage V 62
Output Current Range A 10-215
Rated Output Voltage V 18
Duty Cycle (25ºc) % 60
Arc-Starting   HF
Efficiency % 85
Power Factor (cos Φ)   0.93
Insulation Class   F
Weight KG 8.5
Dimension (L x W x H) mm 372 x 158 x 308
Protection Class   IP23
Preflow Time S -
Down-Slope Time S -
Postflow Time S 2.5/5
Base Current A -
Pulse Frequency Hz -
Welding Thickness mm 0.3-8
Accessories   2pcs KDP-50, 4M SR-26 Separated Torch,
3Mx16MM2 Earth Cable + Clamp,
3M 3x2.5MM2 Power Cable.
