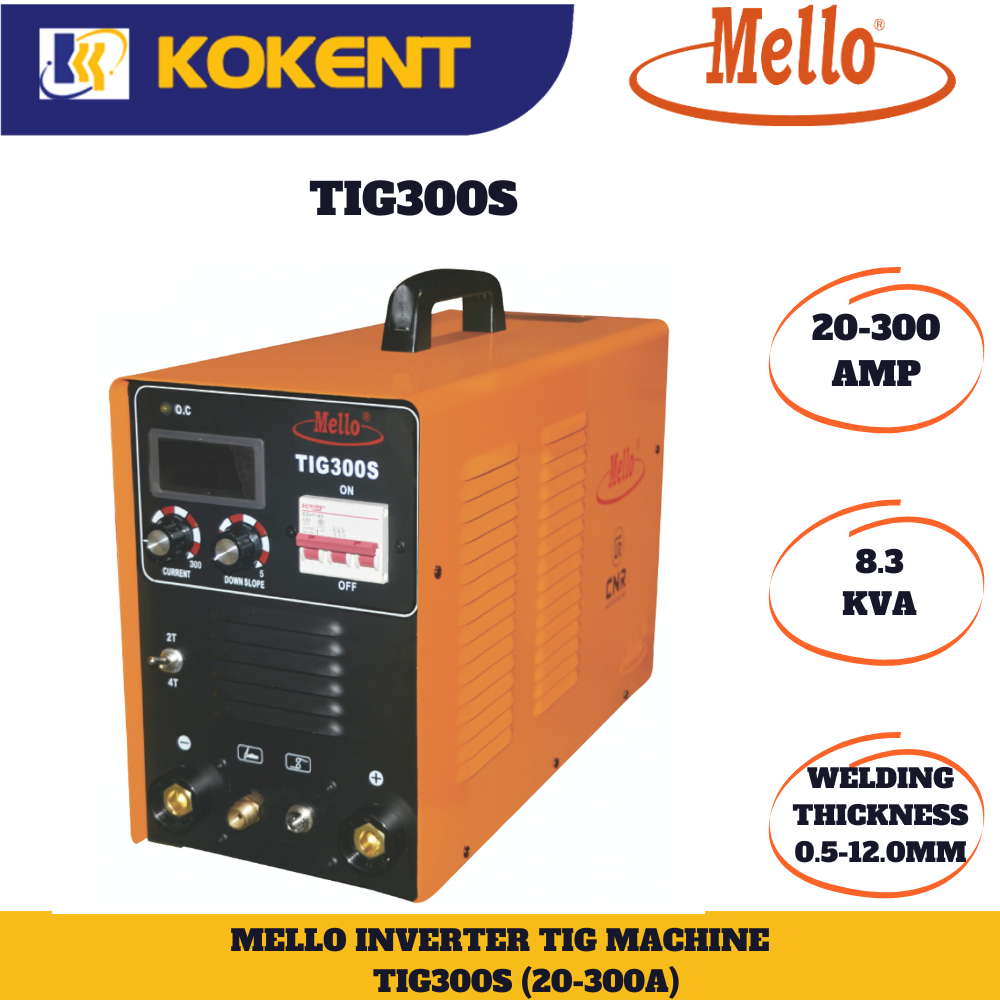

MELLO TIG300S 3 PHASE INVERTER TIG MACHINE
Product Code: TIG300S
Availability: Pre Order
| ITEM \ MODEL | UNIT | TIG 300S |
| Input Power Voltage / Freq. | V/Hz | AC415V 50/60 |
| Rate Input Power Capacity | KVA | 8.3 |
| No-Load Voltage | V | 42 |
| Output Current Range | A | 20-300 |
| Rated Output Voltage | V | 22 |
| Duty Cycle (25°c) | % | 60 |
| Arc-Starting | HF | |
| Efficiency | % | 85 |
| Power Factor (cos Φ) | 0.93 | |
| Insulation Class | F | |
| Weight | KG | 19 |
| Dimension (L x W x H) | mm | 480 x 205 x 320 |
| Protection Class | IP23 | |
| Preflow Time | S | - |
| Down-Slope Time | S | 0-5 |
| Postflow Time | S | 5 |
| Base Current | A | - |
| Pulse Frequency | Hz | - |
| Welding Thickness | mm | 0.5 - 12 |
| Accessories | 2pcs KDP-50, 5M SR-26 Separated Torch, 3MX25MM2 Earth Cable + Clamp, 3M 4X2.5MM2 Power Cable. |
