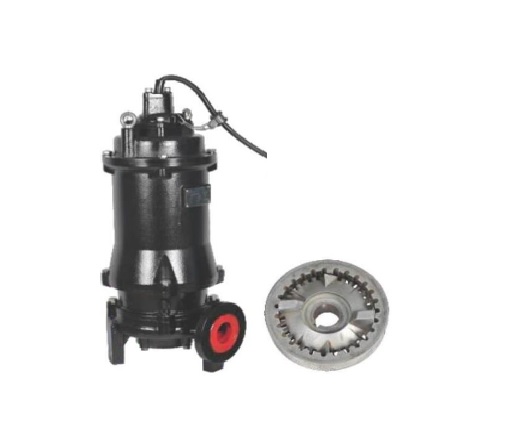

MEUDY G Sewage Pump (II)
Product Code: G Series
Availability: Pre Order
Features :
- G series submersible grinder pump utilize a grinding mechanism in the suction port to crush foreign mater into fine particles before discharging the waste.
Specification :
- Water temperature : up to 35°C
- PH : 6.5 to 8.5
- Insulation class : B
- Protection class : IP68
- Cable length : 8m
Application :
To Transfer of house hold sewage and drainage from drain tanks at below area :
- Sparsely populated areas
- Areas of difficult topography
- Areas with high groundwater
- Small villages and farms
| Model | Motor Power (KW) | Motor Power (HP) | Outlet (inch) | Max Capacity (M³/h) | Max. Head (m) | N.W (KG) | G.W (KG) | Packing Size (mm) |
| 40G2.75(S)F | 0.75 | 1 | 1½ | 12 | 12 | 18 | 22 | 500x200x220 |
| 40G21.5 | 1.5 | 2 | 1½ | 18 | 19 | 38 | 43 | 610x220x250 |
| 40G22.2 | 2.2 | 3 | 1½ | 18 | 25 | 40 | 43 | 610x220x250 |
| 50G23.7 | 3.7 | 5 | 2 | 26 | 30 | 51 | 54 | 700x280x260 |
