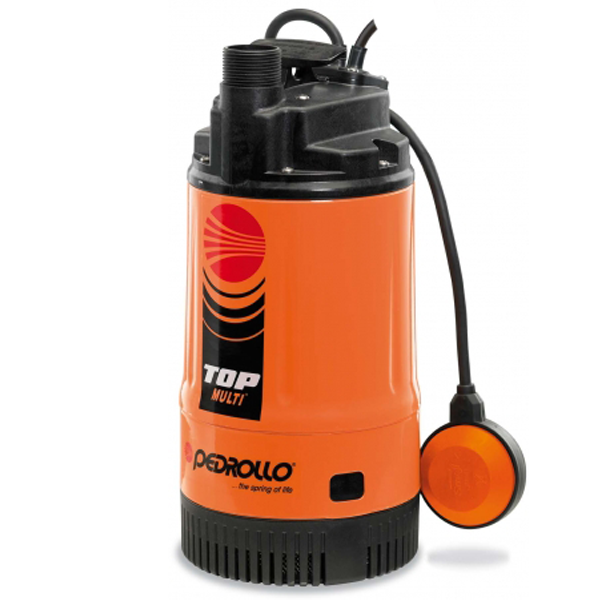

Multi-Stage SubPump 1-1/4" 0.55kW/1 10~80L/min 35~5m TOP-MULTI2
Product Code: TOP-Multi 2
Availability: In Stock
Model: TOP-Multi 2 (Single Phase)
Price inclusives 6%GST.
Descriptions
- As a result of their high efficiency and reliability they are suitable for use in applications such as domestic water supply from reservoirs, tanks or relatively deep wells, for drawing rain water from cisterns to water gardens or for use in irrigation systems, etc.
- Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
Pumped liquid: clean water
Use: domestic, civil
Type: submersible
Range: multi-impeller
Application limits
- 10 m maximum immersion depth
- Maximum liquid temperature +40 °
- Passage of suspended solids up to Ø 1.3 mm
- Suction down to 22 mm above ground level
- Continuous service S1
Specifications
| Size Discharge | 1-1/4" |
| Power | 550 W / Single phase |
| Flow Rate | 10 ~ 80 L/min |
| Head | 35 ~ 5 meters |
| Immersion Limit | Max. 10 meters |
| Liquid Temperature | Max. +40°C |
| Environment Temperature | Max. +40°C |
| Dimensions Ø x H | 178mm x 380mm |
| Weight | 9.4 kg |
