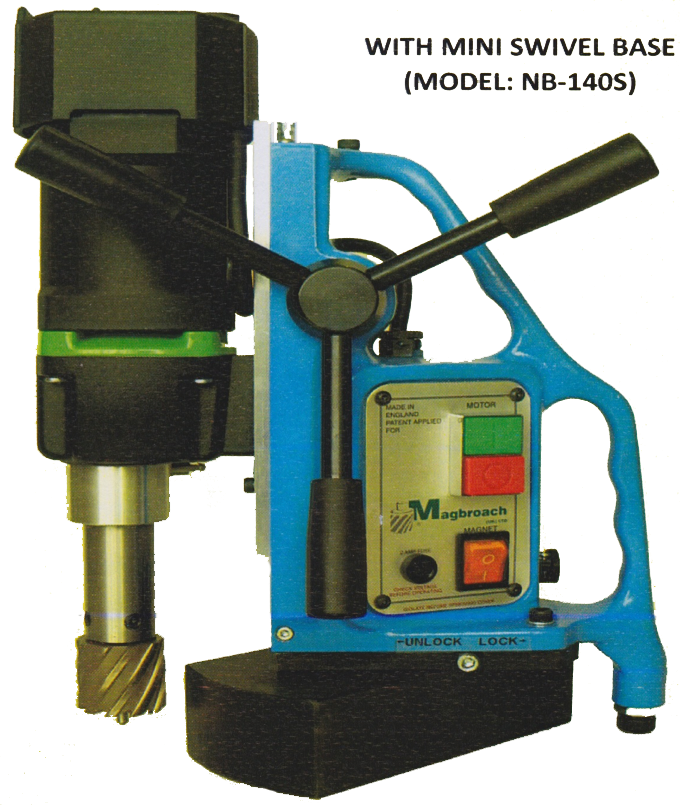

New Broach Magnetic Drill 1010W 720rpm 12-40mm 12kg NB-140S
Product Code: NB-140S
Availability: In Stock
RM0.00
Model: NB-140S (Swivel Base. Drill is made in Germany, assembled in UK)
Compact magnetic drill with twin rail slide system. Swivel Base.
Price inclusives 6%GST.
Features of Twin Rail Slide System
- T.R.S.S. maximises slide stability.
- Up to 10 times better stability whan dovetail systems.
- Slide has no contact with main body of machine.
- Reduced friction less wear.
- Reduced cutter breakages due to better slide stability.
- Improved cutter life.
- Better tolerance achivable.
- Improved hole quality.
- Up to 110mm cutting depth with cutters with small machine.
- Low maintenance better reliability.
Specifications
| Motor Power | 1010 watts |
| Total Power | 1060 watts |
| No Load Speed | 720 rpm |
| Full Load Speed | 450 rpm |
| Arbor / Drive Weldon | 19mm |
| Drilling Capacity | 3-16mm |
| Countersink Capacity | 10-30mm |
| Slide Stroke | 170mm |
| Magnetic Adesion | 1100kg |
| Magnetic Foot | 85 x 170mm |
| Magnet | Fixed |
| Overall Dimensions (L x W x H) | 280mm x 120mm x 320mm |
| Arbor for Cutters | 19mm |
| Coolant System | Through Arbor |
| Weight | 12.0kg |
