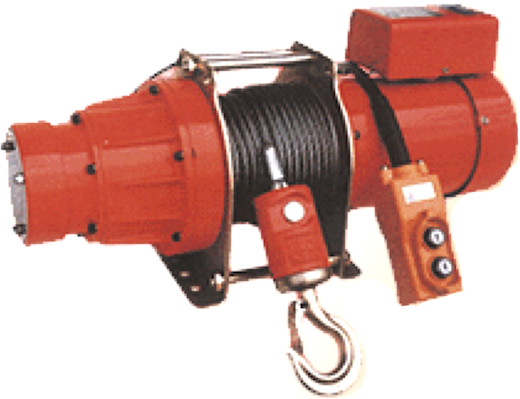

NKK Electric Winch 300kg, 6mmX30m, 13.5m/min, 33kg TW300-3

NKK Electric Winch 300kg, 6mmX30m, 13.5m/min, 33kg TW300-3
NKK Electric Winch 300kg, 6mmX30m, 13.5m/min, 33kg TW300-3

NKK Electric Winch 300kg, 6mmX30m, 13.5m/min, 33kg TW300-3

Product Code: TW300-3 (3 phase)
Availability: Pre Order
Loading ...
Share:

Model: TW300-3 (3 phase)
Electric winch with lifting capacitu up to 300kg.

Made in Taiwan. Included Taiwan safety tested certificated.

Price inclusives 6%GST.

Features

  • High reputed manufacturer from Taiwn with their outstanding R&D capability and extensive experience.
  • Light weight & compact design allows mounting convenient.
  • When rope touches the limit arm, hoisting is automatically stopped.
  • A sensor arm stops the motor when the rope is reverse sinding.
  • Dynamic brake designs for both static and dynamic loading.
  • Separated quick connection for convenience.
  • 360° universal joint saddle hook with safety latch.

Specifications

Capacity 300kg
Steel Rope 6mm x 30m
Speed 7.5-13.5m/min
Voltage 415V / 50Hz / 3 Phase
Motor 0.75kW
Packing Dimensions (L x W x H) 600mm x 270mm x 325mm
Net Weight 32.4kg
Gross Weight 33.8kg





Click to enlarge
