NS 5-33 CVBP

Product Code: NS 5-33 CVBP

Availability: In Stock

017 432 8850 019 209 0701

Description

PREFER CONTACT KENT

NS 5-33 CVBP

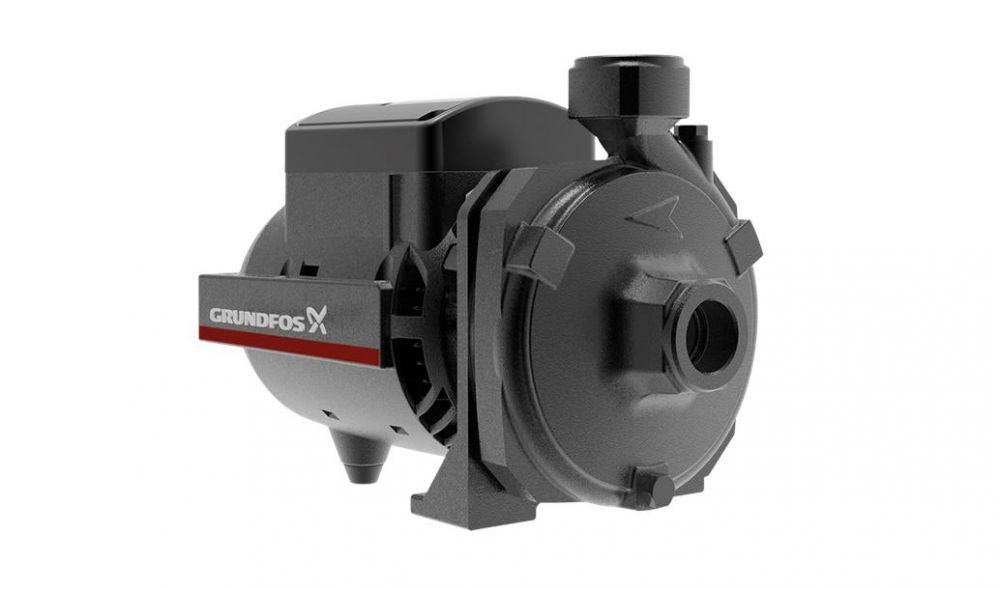

The Grundfos NS single horizontal centrifugal pumps feature cast-iron pump bodies and composite or cast-iron impellers for a long lifetime of reliable operation. The Grundfos NS are non-self-priming pumps, suitable for a variety of applications in private dwellings and light industry. The pump features a totally enclosed, fan-cooled induction motor. The rotor is mounted on oversized greased-for-life ball bearings, ensuring silent running and long life. Single-phase pumps have built-in overload protection and a capacitor that is permanently in circuit.

Liquid:
Pumped liquid:		Water
Liquid temperature range:		-10 .. 50 °C
Liquid temperature during operation:		20 °C
Density:		998.2 kg/m³

Technical:
Primary shaft seal:		CVBP
Approvals on nameplate:		CE,EAC,C-TICK,WEEE
Curve tolerance:		ISO9906:2012 3B

Materials:
Pump housing:		Cast iron
Impeller:		Composite

Installation:
Range of ambient temperature:		0 .. 40 °C
Maximum operating pressure:		6 bar
Maximum permissible inlet pressure:		3 bar
Pump inlet:		Rp 1"
Pump outlet:		Rp 1"

Electrical data:
Power input - P1:		1.3 kW
Mains frequency:		50 Hz
Rated voltage:		1 x 220-240 V
Rated current:		6 A
Capacitor size - run:		20 µF/450 V
Enclosure class (IEC 34-5):		IP44
Insulation class (IEC 85):		F

Others:
Net weight:		15 kg
Gross weight:		16 kg
Shipping volume:		0.024 m³
