NS 6-40 CVBP

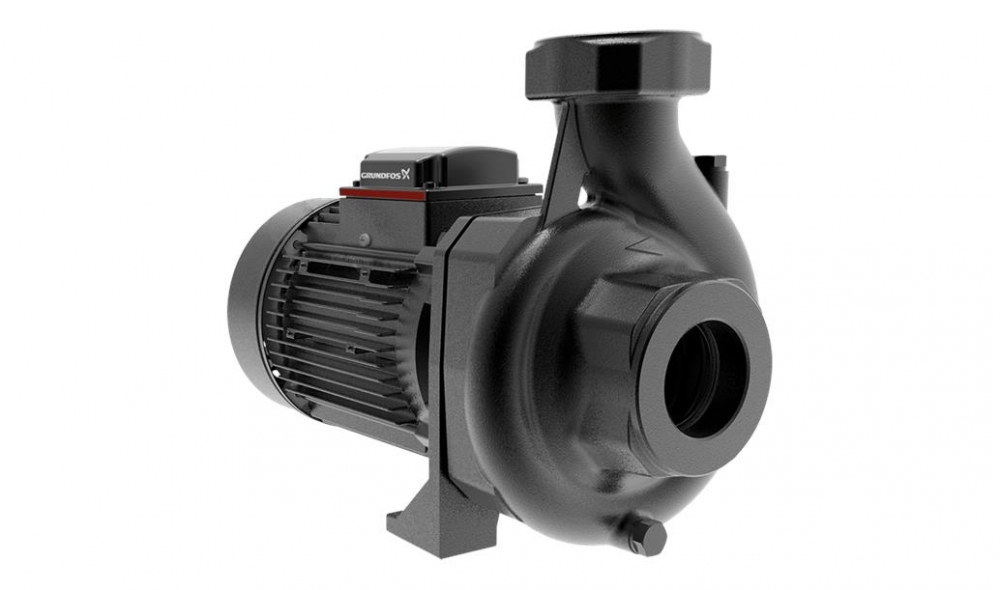

The Grundfos NS single horizontal centrifugal pumps feature cast-iron pump bodies and composite or cast-iron impellers for a long lifetime of reliable operation. The Grundfos NS are non-self-priming pumps, suitable for a variety of applications in private dwellings and light industry. The pump features a totally enclosed, fan-cooled induction motor. The rotor is mounted on oversized greased-for-life ball bearings, ensuring silent running and long life. Single-phase pumps have built-in overload protection and a capacitor that is permanently in circuit.



Liquid:
Pumped liquid:    Water
Liquid temperature range:    -10 .. 50 °C
Liquid temperature during operation:    20 °C
Density:    998.2 kg/m³

Technical:
Primary shaft seal:    CVBP
Approvals on nameplate:    CE,EAC,C-TICK,WEEE
Curve tolerance:    ISO9906:2012 3B

Materials:
Pump housing:    Cast iron
Impeller:    Composite

Installation:
Range of ambient temperature:    0 .. 40 °C
Maximum operating pressure:    6 bar
Maximum permissible inlet pressure:    2 bar
Pump inlet:    Rp 1 1/2"
Pump outlet:    Rp 1"

Electrical data:
Power input - P1:    2 kW
Mains frequency:    50 Hz
Rated voltage:    1 x 220-240 V
Rated current:    9 A
Capacitor size - run:    40 µF/450 V
Enclosure class (IEC 34-5):    IP44
Insulation class (IEC 85):    F
Length of cable:    2 m
Type of cable plug:    SCHUKO

Others:
Net weight:    24 kg
Gross weight:    26 kg
Shipping volume:    0.034 m³
