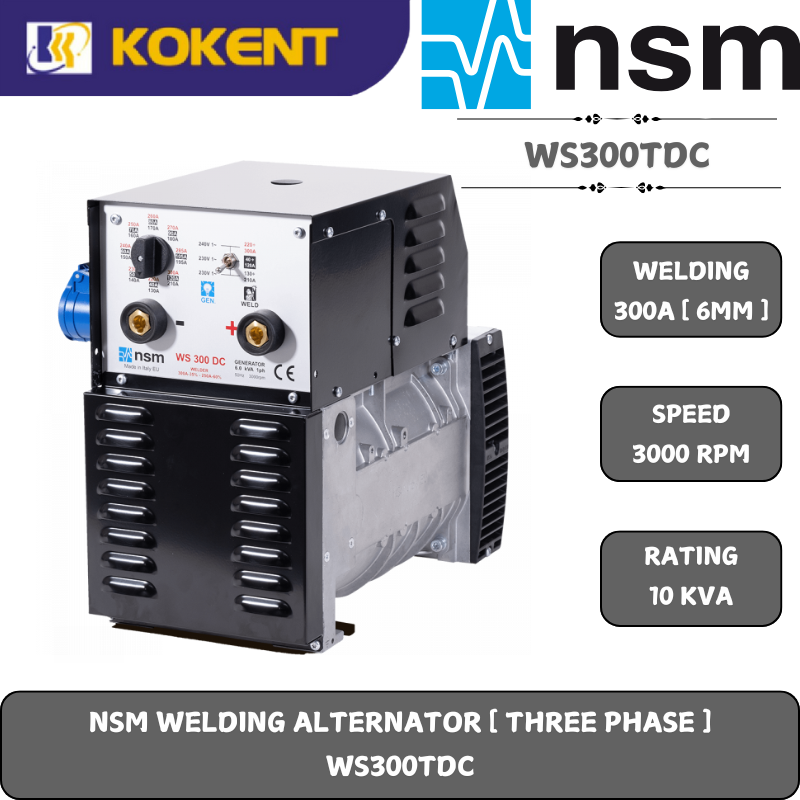

NSM WELDING ALTERNATOR [ THREE PHASE ] WS300TDC

MODEL :-WS300TDC

TYPE  :-DC WELDER-2 POLES,DIRECT CURRENT

(SINGLE PHASE BRUSH ALTERNATOR)

BELT DRIVEN (B34)

SPEED (RPM) :-3000

FREQUENCY (HZ) :-50

WELDING CURRENT > :-250A (=5MM) >12KW (16HP)

DRIVING POWER :-300A (=6MM) >15KW (20HP)

STRIKE VOLTAGE (V) :-75

DUTY :-250A (60%)

300A (35%)

PROTECTION :-IP23

WELDABLE ELECTRODES :-ALL TYPE : INCLUDED BASIC AND CELLULOSIC

THERMAL BREAKER :-SUPPLIED WITH AUTORESETABLE THERMAL BREAKER AGAINST OVERLOAD

ALTERNATOR :-YES,SINGLE PHASE

RATING (SINGLE PHASE) KVA :-4

RATING (THREE PHASE) KVA :-10

WEIGHT (KG) :-75
