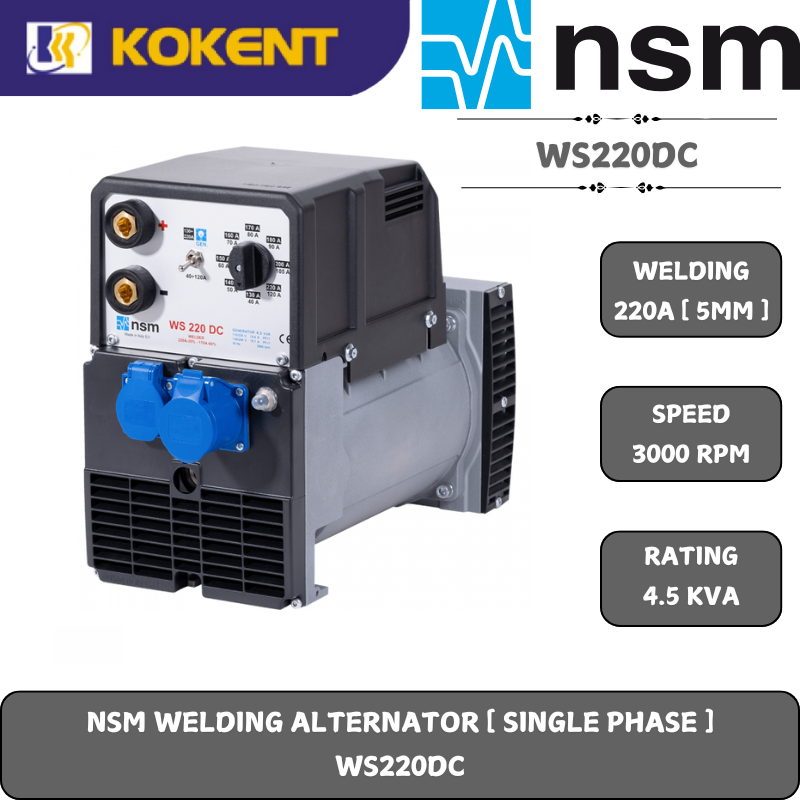

NSM WELDING ALTERNATOR WS220DC

MODEL :-WS220DC

TYPE  :-DC WELDER-2 POLES,DIRECT CURRENT

(SINGLE PHASE BRUSH ALTERNATOR)

DIRECT COUPLE (J609B)

SPEED (RPM) :-3000

FREQUENCY (HZ) :-50

WELDING CURRENT > :-170A (=4MM) >7.0KW (9.5HP)

DRIVING POWER :-220A (=5MM) >9.0KW (12HP)

STRIKE VOLTAGE (V) :-65/85

DUTY :-170A (60%)

220A (35%)

PROTECTION :-IP23

WELDABLE ELECTRODES :-ALL TYPE : INCLUDED BASIC AND CELLULOSIC

THERMAL BREAKER :-SUPPLIED WITH AUTORESETABLE THERMAL BREAKER AGAINST OVERLOAD

ALTERNATOR :-YES,SINGLE PHASE

RATING (SINGLE PHASE) KVA :-4.5

RATING (THREE PHASE) KVA :-

WEIGHT (KG) :-45
