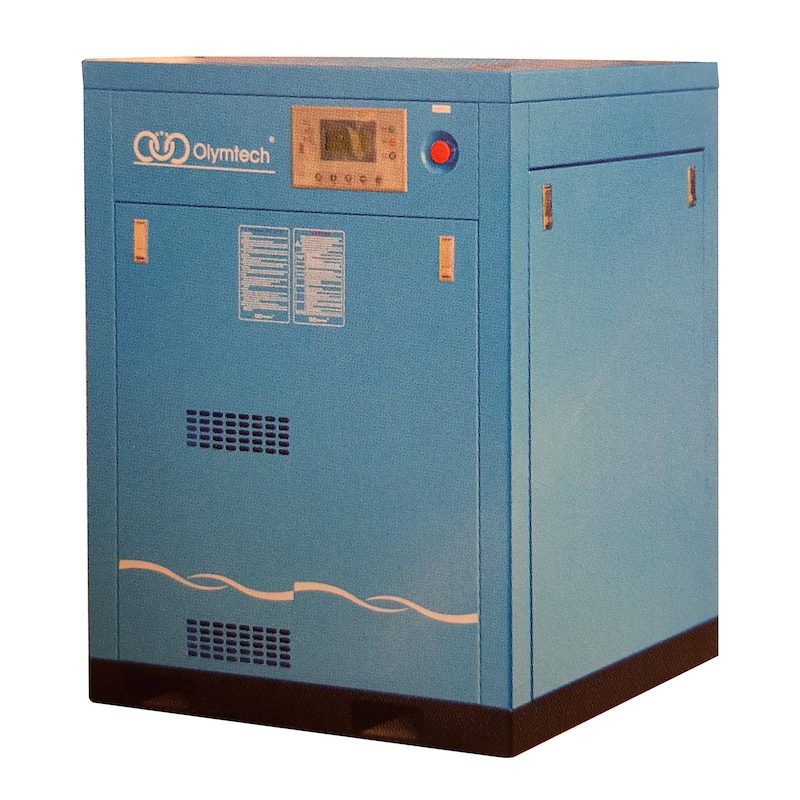

Olymtech Silent Screw Air Compressor20HP 12Bar 1800L/min OL15-13

Olymtech Silent Screw Air Compressor20HP 12Bar 1800L/min OL15-13
Olymtech Silent Screw Air Compressor20HP 12Bar 1800L/min OL15-13

Olymtech Silent Screw Air Compressor20HP 12Bar 1800L/min OL15-13

Product Code: OL15-13
Availability: In Stock
Loading ...
Share:

Model: OL15-13 (Belt Driven)
Silent screw air compressor 15HP, 8Bar.

Price inclusives 6% GST.

Advantages of Screw Air Compressor

  • High Efficiencty
    a) High compression efficiency, less energy input, multiple output compressed air.
    b) Use the air-end with large rotor, large bearing and low speed. Compressor can be achieved 1-2 level energy efficiency standard.
  • Easy Installation & Operation
    a) Compressor are filled with lubrication oil before delivering. You can operate it after installing and power on.
    b) PLC intelligent control system, can remind you for maintenance timely.
  • Reliability & Safety
    a) No matter in the dry environment or moist environment, compressor can run very well.
    b) Strong safety protection funtion. Such as the air-end over load protection, motor protection, exhaust temperature protection.
    c) Professional wire composition in the electricity box, ensure the system can be run without any fault.
  • Save Energy
    a) Using the intelligent control system, compressor can be loading or unloading automatically accordingly the actual deman of compressed air.
    b) Can reduce the operation cost and energy consumption.
  • Low Maintenance
    a) High technology air-end, not easy to be broken.
    b) Superb motor bearing, sturdy and durable.
    c) Large capacity air filter, air/oil separator, longer service life time.
    d) Heavy duty but simplified air intake valve.
  • Auto Shutdown for following reasons
    a) High temperature
    b) High pressure
    c) Electric motor overload / Thermal overload

Specifications

Model  OL15-13
Rated Working Pressure 812.5 Bar (182psig)
Capacity F.A.D 1800L/min (64cfm)
Connection 1 inch
Cooling Method Oil Cooled
Outlet Temperature 80°C
Operation Time 24 hours, continue 7 days
Lube Oil Replacement Every 2000hours (1st service: 500 hours)
Oil Capacity 8 Liters
Water Filter Built In (Remove 50% water)
Oil Filter Included: Replace every 2000hours
(1st service: 500 hours)
Motor Capacity 20 HP (15kW)
Rotor Speed 2150 rpm
Motor RPM 1500 rpm
Motor Start Up Direct Start
Standard Power Supply 380V / 50Hz / 3Ph
Motor to Compressor Belt Driven
Compression Stage Single Stage
Exhaust Temperature Ambient Temperature +15°C
Noise Level 68dB(A)
Weight 380kg
Dimensions (L x W x H) 950mm x 870mm 1230mm
Maintenance a) Yearly maintenance cost: RM2000.00
b) Main maintenance period: 20k hours
c) Only need to change bearings & oil seal
