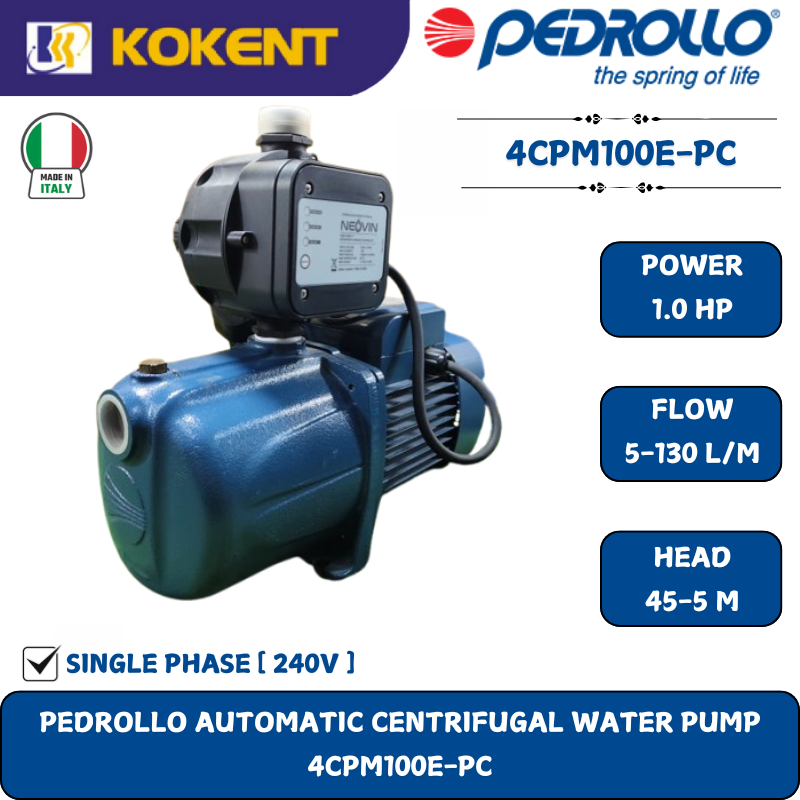

PEDROLLO AUTOMATIC CENTRIFUGAL WATER PUMP [1HP.5-130L/M.45-5 M] 4CPM100E-PC

Pedrollo Multi-stage Centrifugal Pump 4CPm 100C

Model : Single-phase

Size 1" x 1"

Power (KW/Phase) : 0.75 / 1

Flow (L/min) : 5 ~ 130

Head (Meter) : 50 ~ 5

Weight : 14.9 kg

Performance Range :

Flow rate up to130 l/min (7,8 m³/h)

Head up to52 m

Application Limit :

Manometric suction lift up to 7 m

Ambient Temperature to +40 °C

Liquid temperature between-10 °C to +40 °C

Max. working pressure 6 bar

Continuous service S1

Installation And Use :

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. As a result of their quietness, these pumps are widely used in domestic applications such as the distribution of water in combination with small and medium-sized pressure tanks, and for the irrigation of gardens and orchads, etc. Installation needs to be undertaken in well-ventilated closed areas or anyway protected from bad weather.
