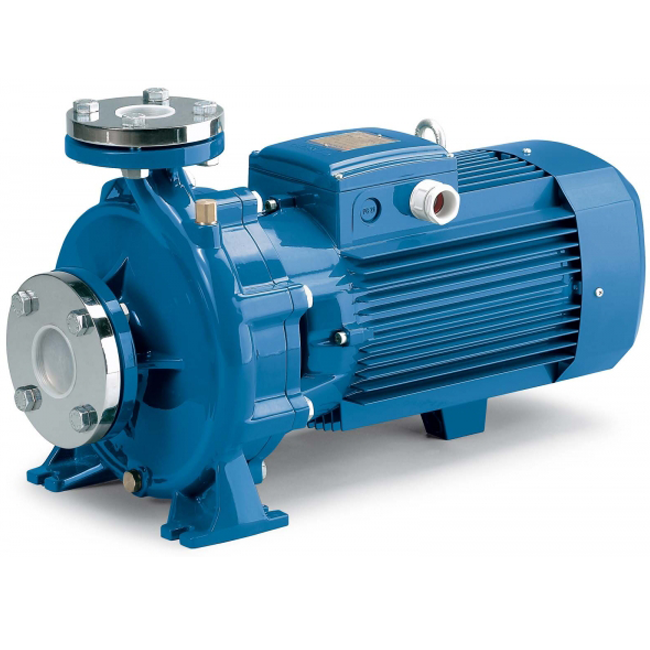

Pedrollo C. Pump Energy Save 11000W 100~700L/min 71~55m F40/250B

Pedrollo C. Pump Energy Save 11000W 100~700L/min 71~55m F40/250B
Pedrollo C. Pump Energy Save 11000W 100~700L/min 71~55m F40/250B

Pedrollo C. Pump Energy Save 11000W 100~700L/min 71~55m F40/250B

Product Code: F40/250B
Availability: In Stock
Loading ...
Share:

PREFER CONTACT KENT

Model: F40/250B (Three Phase)

Price inclusives 6%GST.

PUMP INSTALLATION AND APPLICATIONS

  • These pumps are recommended for clean water and fluids that are not chemically aggressive to the pump components.
  • THEY ARE PRINCIPALLY USED FOR CIVIL, INDUSTRIAL AND AGRICULTURAL APPLICATIONS, WHICH BENEFIT FROM THEIR STURDINESS AND RELIABILITY.
  • They are manufactured to EN 733 - DIN 24255 standards. Overall dimensions, sizes and positions of suction and delivery ports, support feet and other dimensional characteristics comply with these standards.
  • Users can be sure these pumps will meet even the most demanding heavy-duty needs and that they can be easily interchanged with other standardized pumps.
  • The design allows dismantling without disconnecting the pump body from the pipeline (back pull-out), making them easy to use in a variety of conditions.

PERFORMANCE

  • F pumps come in a wide and diverse range. The wide range makes it easy to select the correct model for each application.
  • Together with high performance efficiency, this means big savings in operating costs since these are powerful machines often intended for continuous duty.
  • Long stable characteristic curves.
  • Performance characterized by high absolute values over the majority of the curve;
  • Flat absorption curves at high delivery rates, to prevent motor overloading even during prolonged use.
  • Good suction capacities at both low and high delivery rates.
  • Curve tolerance according to ISO 2548.

APPLICATION LIMITS

  • Manometric suction lift up to 7 m
  • Liquid temperature between -10 °C and +90 °C
  • Ambient temperature between -10 °C and +40 °C
  • Max. pressure in pump body 10bar (PN10)
  • Continuous service S1

STRUCTURAL CHARACTERISTICS

  • Cast iron PUMP BODY manufactured to EN 733 - DIN 24255 AND UNI 7467-NF E-44-111 Standards, built with flanged suction and delivery ports 9UNI 2236 PN10).
  • Cast iron back-plate / motor bracket incorporating the mechanical seal housing.
  • BRASS IMPELLER centrifugal radial flow type. (CAST IRON on 50/250 and above)
  • AISI 316 stainless steel MOTOR SHAFT
  • Ceramic and graphite MECHANICAL SEAL
  • MOTOR: pumps are coupled directly to an asynchronous, high efficiency PEDROLLO induction motor of suitable size, which is quiet running, closed and externally ventilated, suitable for continuous duty. INSULATION class F

All three phase motors require an adequate external motor protector connected according to current standards.

  • PROTECTION IP 55
  • CONSTRUCTION AND SAFETY STANDARDS in compliance with EN 60 335 -1, (IEC 335-1, CEI 61-150) EN 60034-1 (IEC 34-1, CEI 2-3).

Specifications

Size Discharge   2-1/2" x 1-1/2"
Power 11000 W / Three phase
Flow Rate 100 ~ 700 L/min
Head 71 ~ 55 meters
Manometric Suction Lift Max. 7 meters
Liquid Temperature Max. +90°C
Environment Temperature  Max. +40°C
Dimensions (L x W x H)   606mm x 328mm x 405mm
Weight 109 kg
