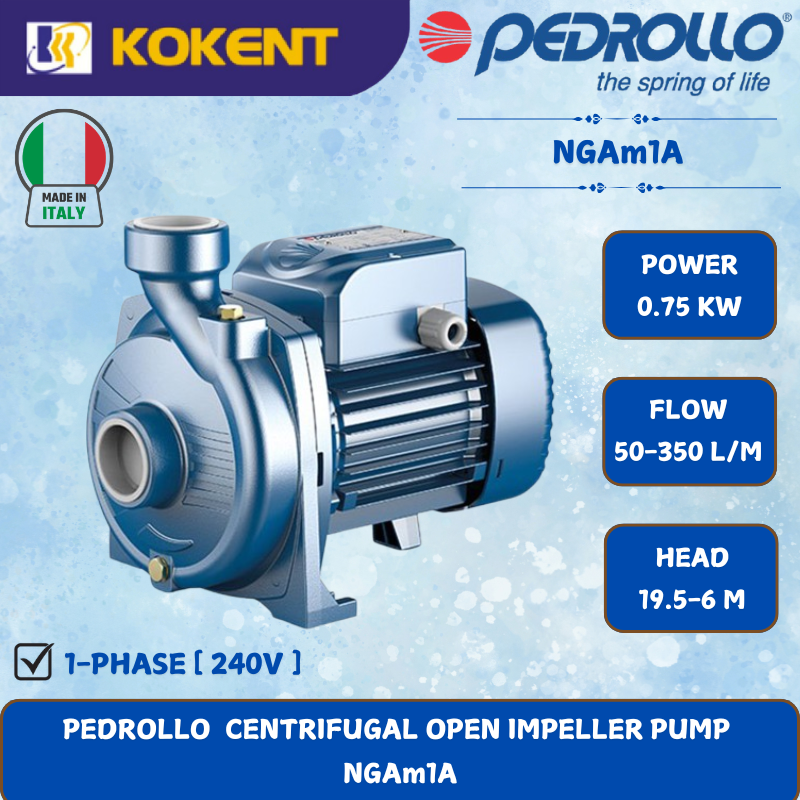

PEDROLLO CENTRIFUGAL OPEN IMPELLER PUMP [0.75KW.50-350L/MIN.19.5-6M/HEAD] NGAm1A

Description

Model: NGAm1A (Made in Italy)

Pedrollo centrifugal water pump with open impeller.

Single phase, 240V.

Descriptions

• Suitable for use with liquids that are not chemically aggressive towards the materials from which the pump is made.
• The open impeller design allows liquids containing relatively high levels of impurities to be pumped without the risk of the impeller clogging.
• As a result of these characteristics the NGA series pumps are used specifically in industry and for transferring water from canals, rivers, reservoirs, tanks, etc.
• The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Pumped liquid: clean or relatively laden water

Use: domestic, industrial, agricultural

Type: surface

Range: centrifugal

Application limits

• Manometric suction lift up to 7 m
• Liquid temperature between -10 °C and +90 °C (up to +40 for the version with the technopolymer impeller)
• Ambient temperature between -10 °C and +40 °C
• Max. working pressure 6 bar
• Passage of suspended solids up to Ø 10 mm
• Continuous service S1

Specifications

Accessories Included

• Without cable
• Carton box
