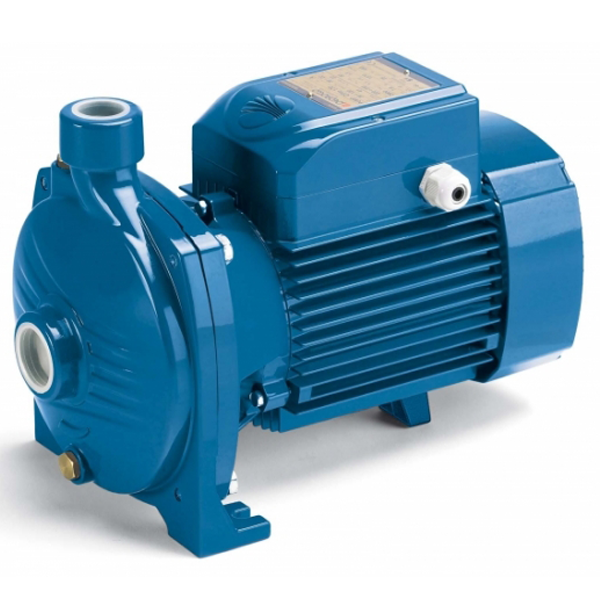

Pedrollo Centrifugal Pump 0.75kW, 10~90L/min, 34~25m, CPm158

Product Code: CPm158

Availability: In Stock

Model: CPm158 (Single Phase)

Price inclusives 6%GST.

Descriptions

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments.
The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Pumped liquid: clean water

Use: domestic, civil

Type: surface

Range: centrifugal

Application limits

Manometric suction lift up to 7 m
Liquid temperature between -10 °C and +90 °C (up to +40 for the version with the technopolymer impeller)
Ambient temperature up to +40 °C
Max. working pressure:
(a) 6 bar for CP 100-130-132-150-158, CP 600-610-620
(b) 10 bar for CP 170-190-200, CP 650-660-670-650M-660M-670M
Continuous service S1

Specifications
