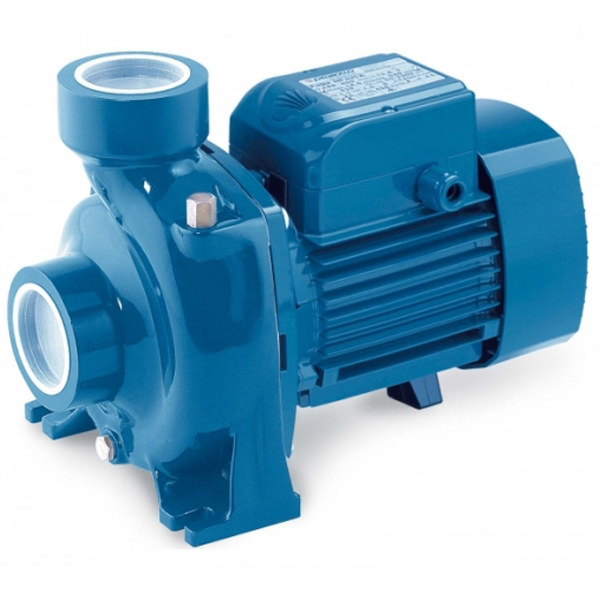

Pedrollo Centrifugal Pump 0.75kW 50~300L/min 20.2~8.4m HFm51A

Pedrollo Centrifugal Pump 0.75kW 50~300L/min 20.2~8.4m HFm51A
Pedrollo Centrifugal Pump 0.75kW 50~300L/min 20.2~8.4m HFm51A

Pedrollo Centrifugal Pump 0.75kW 50~300L/min 20.2~8.4m HFm51A

Product Code: HFm51A
Availability: In Stock
Loading ...
Share:

PREFER CONTACT KENT

Model: HFm51A (Single Phase)

Price inclusives 6%GST.

Descriptions

  • Suitable for use in civil and agricultural applications.
  • The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required.
  • The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Pumped liquid: clean water

Use: civil, agricultural

Type: surface

Range: centrifugal

Application limits

  • Manometric suction lift up to 7 m
  • Liquid temperature between -10 °C and +90 °C
  • Ambient temperature up to +40 °C
  • Max. working pressure:
    (a) 6 bar for HF 5-50-51
    (b) 10 bar for HF 5M-60-70
  • Continuous service S1

Specifications

Size Discharge   1-1/2" x 1-1/2"
Power 750 W / Single phase
Flow Rate 50 ~ 300 L/min
Head 20.2 ~ 8.4 meters
Manometric Suction Lift Max. 7 meters
Liquid Temperature Max. +90°C
Environment Temperature  Max. +40°C
Dimensions (L x W x H)   300mm x 190mm x 225mm
Weight 13 kg
