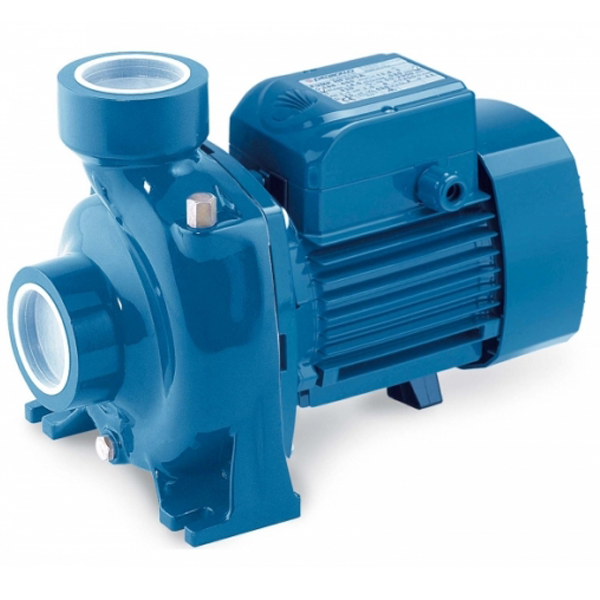

Pedrollo Centrifugal Pump 1.1kW 100~600L/min 13.8~3m HF5A

Pedrollo Centrifugal Pump 1.1kW 100~600L/min 13.8~3m HF5A
Pedrollo Centrifugal Pump 1.1kW 100~600L/min 13.8~3m HF5A

Pedrollo Centrifugal Pump 1.1kW 100~600L/min 13.8~3m HF5A

Product Code: HF5A
Availability: In Stock
Loading ...
Share:

PREFER CONTACT KENT

Model: HF5A (Three Phase)

Price inclusives 6%GST.

Descriptions

  • Suitable for use in civil and agricultural applications.
  • The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required.
  • The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Pumped liquid: clean water

Use: civil, agricultural

Type: surface

Range: centrifugal

Application limits

  • Manometric suction lift up to 7 m
  • Liquid temperature between -10 °C and +90 °C
  • Ambient temperature up to +40 °C
  • Max. working pressure:
    (a) 6 bar for HF 5-50-51
    (b) 10 bar for HF 5M-60-70
  • Continuous service S1

Specifications

Size Discharge   2" x 2"
Power 1100 W / Three phase
Flow Rate 100 ~ 600 L/min
Head 13.8 ~ 3 meters
Manometric Suction Lift Max. 7 meters
Liquid Temperature Max. +90°C
Environment Temperature  Max. +40°C
Dimensions (L x W x H)   316mm x 192mm x 238mm
Weight 15.3 kg
