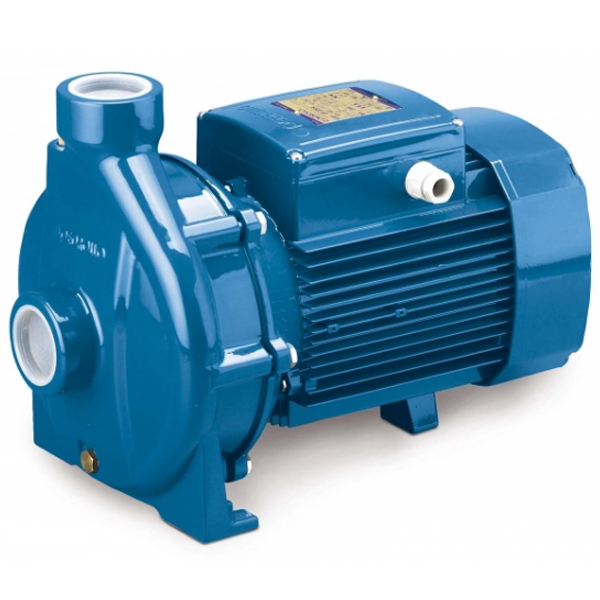

Pedrollo Centrifugal Pump 1.1kW, 50~200L/min 32.5~18m CP160C

    Pedrollo Centrifugal Pump 1.1kW, 50~200L/min 32.5~18m CP160C

    Product Code: CP160C
    Availability: In Stock
    Loading ...
    017 432 8850019 209 0701
    Share:



    Model: CP160C (Three Phase)

    Price inclusives 6%GST.

    Descriptions

    • Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
    • As a result of their reliability and the fact that they are easy to use, these pumps are widely used in civil, agricultural and industrial applications such as for supplying water, in conditioning and cooling systems, for irrigation, etc.
    • The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.


    Pumped liquid: clean water

    Use: civil, industrial, agricultural

    Type: surface

    Range: centrifugal

    Application limits

    • Manometric suction lift up to 7 m
    • Liquid temperature between -10 °C and +90 °C
    • Ambient temperature between -10 °C and +40 °C
    • Max. working pressure 10 bar
    • Continuous service S1

    Specifications

    Size Discharge   1-1/2" x 1"
    Power 1.1 kW / Three phase
    Flow Rate 50 ~ 200 L/min
    Head 32.5 ~ 18 meters
    Manometric Suction Lift Max. 7 meters
    Liquid Temperature Max. +90°C
    Environment Temperature  Max. +40°C
    Dimensions (L x W x H)   375mm x 206mm x 260mm
    Weight 18 kg
