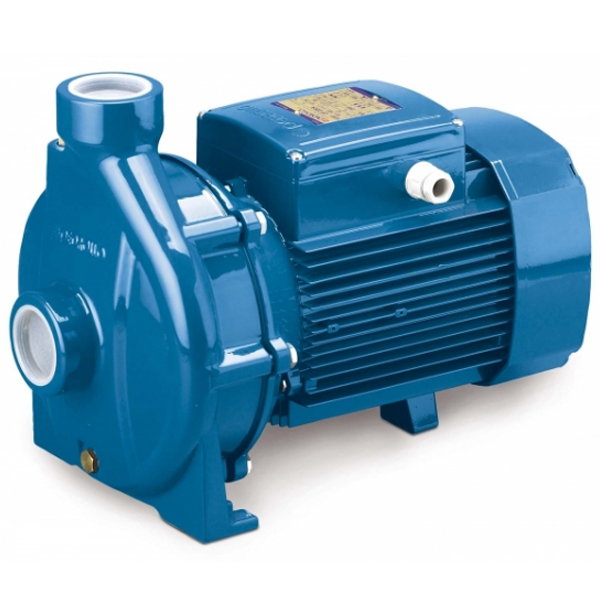

Pedrollo Centrifugal Pump 2.2kW, 50~220L/min 41~24m CP160A
Product Code: CP160A
Availability: In Stock
PREFER CONTACT KENT
Model: CP160A (Three Phase)
Price inclusives 6%GST.
Descriptions
- Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
- As a result of their reliability and the fact that they are easy to use, these pumps are widely used in civil, agricultural and industrial applications such as for supplying water, in conditioning and cooling systems, for irrigation, etc.
- The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Pumped liquid: clean water
Use: civil, industrial, agricultural
Type: surface
Range: centrifugal
Application limits
- Manometric suction lift up to 7 m
- Liquid temperature between -10 °C and +90 °C
- Ambient temperature between -10 °C and +40 °C
- Max. working pressure 10 bar
- Continuous service S1
Specifications
| Size Discharge | 1-1/2" x 1" |
| Power | 2.2 kW / Three phase |
| Flow Rate | 50 ~ 220 L/min |
| Head | 41 ~ 24 meters |
| Manometric Suction Lift | Max. 7 meters |
| Liquid Temperature | Max. +90°C |
| Environment Temperature | Max. +40°C |
| Dimensions (L x W x H) | 375mm x 206mm x 260mm |
| Weight | 21.3 kg |
