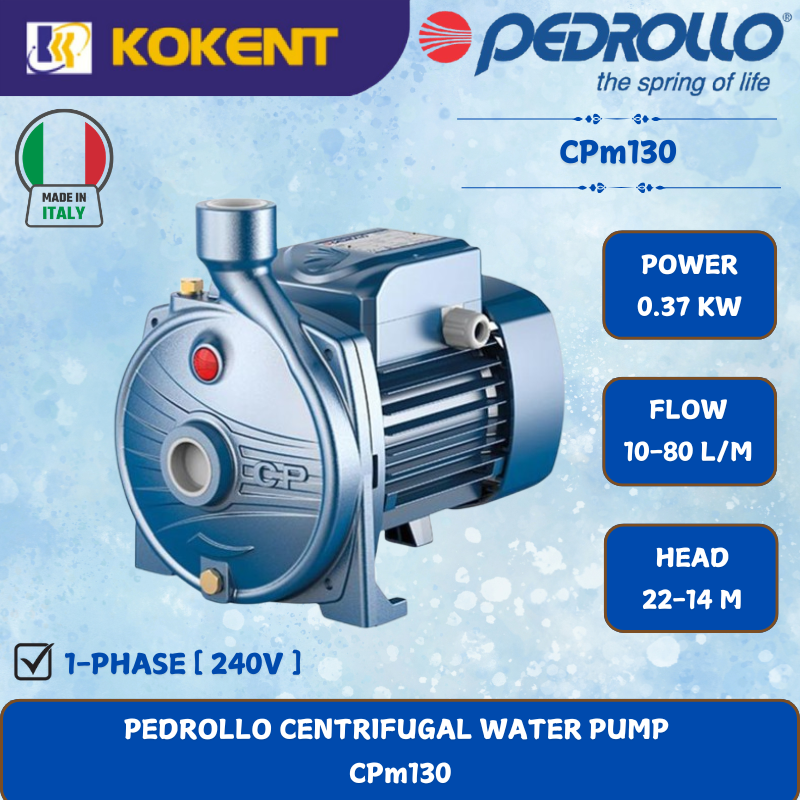

PEDROLLO CENTRIFUGAL WATER PUMP [0.37KW.10-80L/MIN.22-14M/HEAD] CPm130

Description

Model: CPm130 (Made in Italy)

Pedrollo centrifugal pump with low/medium flow rate but high head.

Single Phase, 240V

Descriptions

• Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
• Widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments.
• The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Features

• Liquid type: clean water
• Uses: domestic, civil
• typology: surface
• Family: centrifugal

Applications

• water supply systems
• air conditioning systems
• pressure systems
• cooling systems
• irrigation pumps
• liquids transfer

Performance Range

• Flow rate up to 160 l/min (9,6 m³/h)
• Head up to 56 m

Application Limit

• Temperature of the liquid from -10 °C to +90 °C
• Ambient Temperature to +40 °C
• Manometric suction lift up to 7 m
• Max. working pressure:
  a) 6 bar for CP 100-130-132-150-158
  b) 10 bar for CP 170-190-200
• Continuous service S1

Specifications

Accessories Included

• Without cable
• Carton box
