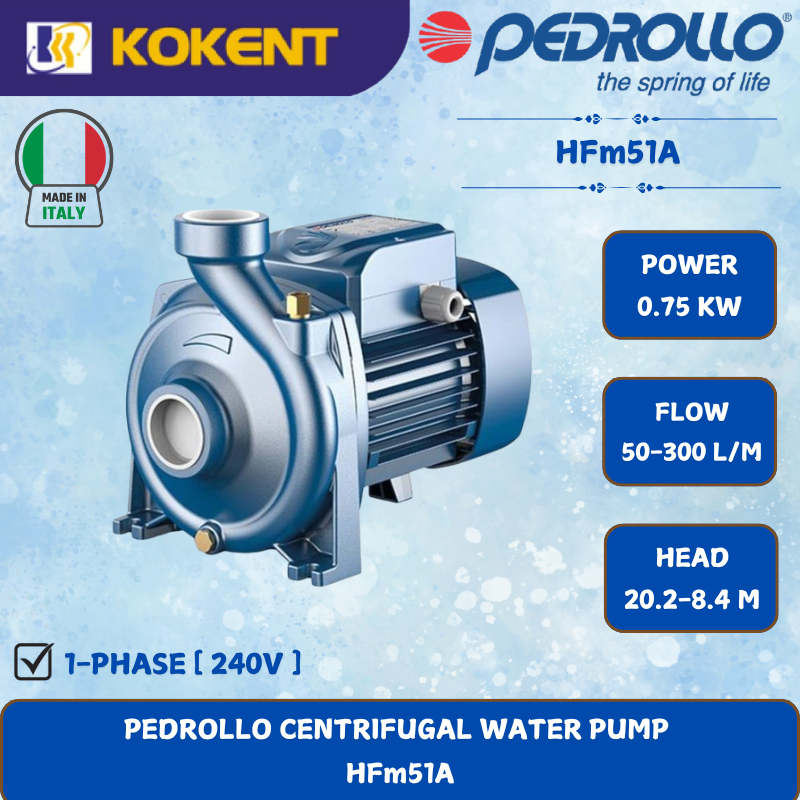

PEDROLLO CENTRIFUGAL WATER PUMP [0.75KW.50-300L/MIN.20.2-8.4M/HEAD] HFm51A

Description

Model: HFm51A (Made in Italy)

Pedrollo centrifugal pump with high flow rate but low/medium head.

Single phase, 240V

Descriptions

• Suitable for use in civil and agricultural applications.
• The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required.
• The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Pumped liquid: clean water

Use: civil, agricultural

Type: surface

Range: centrifugal

Application limits

• Manometric suction lift up to 7 m
• Liquid temperature between -10 °C and +90 °C
• Ambient temperature up to +40 °C
• Max. working pressure:
  (a) 6 bar for HF 5-50-51
  (b) 10 bar for HF 5M-60-70
• Continuous service S1

Specifications

Accessories Included

• Without cable
• Carton box
